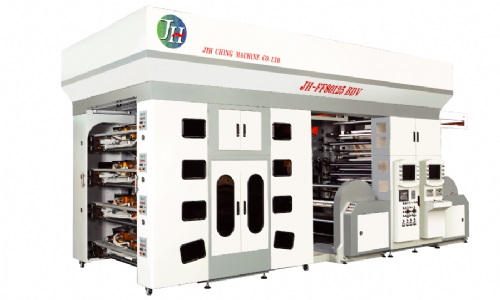

8 Colors Flexographic Printing Machine (Off-Line)
Model: BDV Series Doctor Blade Type
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Flexographic Printing Presses
Characteristics
FCD 45 case iron machine frame, vibration-free at high speed operation.
Main motor by using servo motor (YASKAWA brand) and driven by timing belt, quiet and precise.
Precise doctor blade chamber system with ceramic anilox roller, suitable for superfine printing quality.
PLC memory module type (300 sets) servomotor auto position control system for impression adjustment.
Printing roller, in-feed and out-feed are driven by servo motor (YASKAWA brand).
Use electronic type push-button device to adjust the registration with forward and backward adjustment.
Automatic tension control (MITSUBISHI brand) + magnetic brake on unwind and rewind.
Electronic type automatic edge position control (EPC) on unwind.
Electric control by using PLC (MITSUBISHI brand) with full color touch-screen human machine interface (HMI).
Single-chip advanced print inspection system with full color LCD monitor.
All rotating rollers are treated with dynamic balance correct.
Line speed controlled by harmony synchronous driving system.
Specifications
REPEAT LENGTH : 13 - 35
PRINTING SPEED : 20~200 M / min
FILM WIDTH : 620~1620 mm
PRINTING WIDTH : 600~1600 mm
M/C DIMENSION : 8660 x 2275~3275 x 3880 mm (L x W x H)
