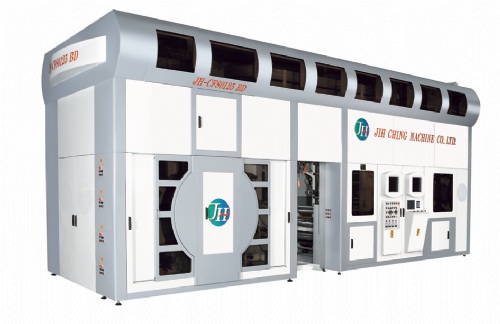

8 Colors Flexographic Printing Machine (Off-Line)

Model: CI Series - Doctor Blade Type

Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Flexographic Printing Presses

Online Inquiry

Characteristics

1) Dual wall type central impression drum, chrome plated with accurate
grind, equipped with water or air cooling circulation system.
2) High precision doctor blade chamber system with ceramic anilox roller, suitable for printing superfine quality. Automatic ink circulation and quick washing system for optional equipment to short ink exchange
and cleaning cycle.
3) Pre-register for forward and backward printing registration..
4) PLC memory module type (300 sets) servomotor auto position control system for impression adjustment.
5) Turret type non-stop auto changing system for optional equipment to
save material change time.
6) Single chip advanced printing video inspection system ("Sony" or "E+L" brand) with full color LCD monitor for register setting.
7) Line speed controlled by harmony synchronous driving system with
high accurate auto tension control system.
8) Perfect drying loop design with exhaust system.
9) Electronic type auto edge position control (EPC) on unwind unit.
10) Fast change-over sleeve type printing roller for optional equipment to quick printing job exchange.
-----------------------------------------------------------------------------------
a) Turret type non-stop unwind and rewind.
(1) Save material change time.

b) Control Panel
(1) Printing quality control system by PLC with touch screen type human machine interface.
(2) Internal operation monitoring system.
c) Precise doctor blade chamber system with ceramic anilox roller
(1) Doctor Blade chamber sealed design to protect against ink leakage.
(2) Uniform distribution of printing ink.
(3) Easy and efficient chamber cleaning.
