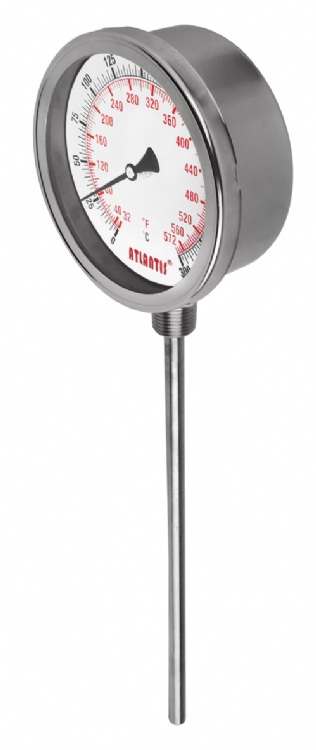

Media-Actuated Thermometer
Model: ITI
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Thermometers
Characteristics
Features
¡½ OEM service
¡½ Media-actuated thermometer with fast response to ambient temperature
¡½ All stainless steel design
¡½ External adjustable screw
¡½ Full scale accuracy within 1.5%
¡½ Customized stem length
¡½ External adjustment screw
¡½ Dual temperature unit scale (¢J/¢K)
Specifications
Main Specifications
¡¿Type
T type / I type / A type
¡¿Size
3”, 4”,5”,6”
¡¿Window
Glass
¡¿Installation type
Bottom mount
¡¿Process connection
Material: SS304
Thread size:
1/4”, 3/8”,1/2”,3/4”,1”
Thread type:
BSPT, NPT, PF
¡¿Stem
Material: SS 304¡þSS 316
Outer diameter: 6.35mm
(Option: 6mm, 8mm, 9.5mm, 12 mm)
The length of stem without thread:
T type¡G40 mmL
(Min. 35 mmL for > 200¢J)
I type¡®A type¡G60mmL
(Min. 40 mmL for > 200¢J)
¡¿Temperature range
Min. -50°C
Max. +600°C
¡¿Applicable fluid
Liquid and gas that compatible with SS304
¡¿Protection level
IP 54
Other Specifications
¡¿Ring
Stainless steel
Outside bayonet
¡¿Case
SS304
External adjustable screw
(Hexagonal flathead screw)
¡¿Pointer
Aluminum with black enamel
¡¿Dial face
Red and black scale
Pressure unit, scale, and color can be customized upon request
¡¿Measuring elements
Media-expansion
Temperature sensing area :
last 2”~4”of stem
¡¿Temperature accuracy
1.5% (Option: 1%)
¡¿Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
