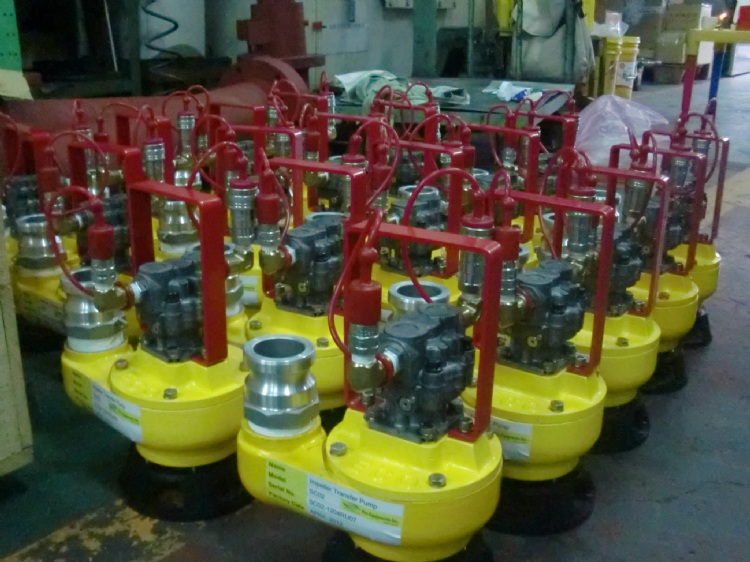

SCO4 螺旋輸送泵
Model: ECO SC04
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pollution Abatement Equipment
Characteristics
Unique Centrifugal Screw Impeller allows
pumping of liquids with Viscosities to 25,000 CST
Small Overall Size allows for use in Confined
Spaces Oil Lubricated Seals (Can Run Dry)
Variable Speed Hydraulic Drive
Wide Range of Performance
Safe Hydraulic Drive can be used where
Will Pass 2 in Semi-Solids
Can be used In-Line as a Booster Pump
Specifications
4“ (100 mm) Discharge
Maximum Flow: 1200 GPM (4500 LPM)
Maximum Head: 195 Feet (60 M)
WEIGHT:............................54 lbs. (25 kg)
Aluminum BODY
HEIGHT:....................... 20 3/4" (53 cm)
DIAMETER (@ widest point):.......................
11 3/4" (30 cm)
DISCHARGE:....................... 4" Camlock or
Flange Adaptor
INLET FLANGE:.. 4" 125# ASA or 100 mm
SOLIDS HDLING:........... 2" (50 mm)
PUMP BODY:.. Aluminum
