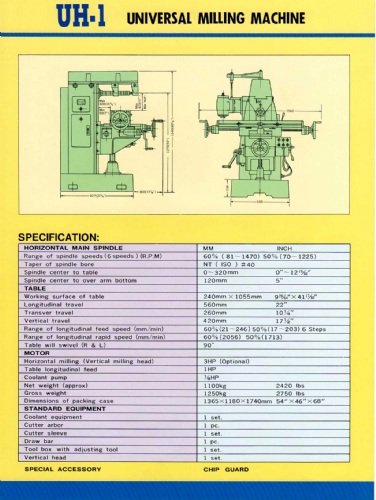

UH-1 UNIVERSAL MILLING MACHINE
Model: UH-1
Category: Machine Tools / Milling Machines / Vertical/Horizontal Milling Machines
Characteristics
UNIVERSAL MILLING MACHINE, The teaching uses the machinery.
Specifications
Horizontal :
1. Rang of spindle speed (6 speeds) : 60 c/s (81~1470)50c/s (70~1225)
2. Taper of spindle bore : NT 40#
3. Spindle center to table : 0~320mm
4. Spindle center to over arm bottom : 120mm
Table:
1. Working surface of table :240mm * 1055mm
2. longitudinal travel : 560mm
3. Transver travel : 260mm (can be come to 300mm)
4. Vertical travel : 420 mm
5. Range of longitudinal feed speed (mm/min) : 60c/s (21~246)
50c/s(17~203) 6 Steps
6.Range of longitudinal rapid speed (mm/min) : 60c/s(2056)50c/s(1713)
7. Table will swivel (R&L) :90 degree
