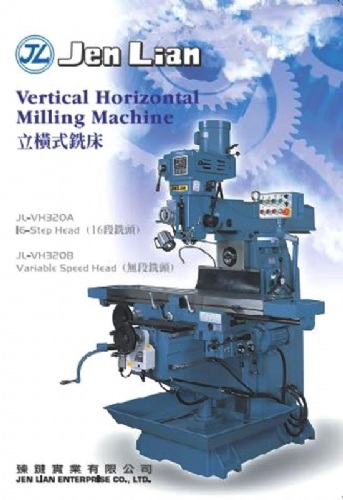

Vertical Horizontal Milling Machine
Model: JL-VH320A
Category: Machine Tools / Milling Machines / Vertical/Horizontal Milling Machines
Characteristics
1. The major structural parts are manufactured from high quality meehanit cast iron, assuring maximum rigidity and stability.
2. X,Y-axis slideways are coated with wear-resistdnt media and precision scraped.
3. Three axes slideways are hardened and precision ground.
4. The table lougitudinal travel is driven through powerful gearbox, making the machine ideal for heavy duty machining.
5. Choice of 16-step or variable speed milling head.
Specifications
Vertical :
1. Spindle speeds : 75~3600 (16 steps) 70~3800 (Variable speed)
2. Quill travel : 140mm
3. Taper of spindle nose : NT 40
4. Swivelling angle of spindle head (R&L) each side : 90 degree
5. Swivelling angle of overarm 360 degree
6. Overarm travel : 450 mm
7. Distance of spindle end to table top : 90~500mm (0~450mm)
Horizontal :
1. Spindle speed : 90~1320 (9 steps)
2. Taper of spidnle nose : NT40
3. Distance of spindle center to table top : 0~460 mm
4. Distance of spindle center to overarm bottom : 160 mm
Table :
1. Working surface of table : 300 * 1500 mm
2. X travel : 1000 mm
3. Y travel : 380 mm
4. Z travel : 460 mm
5. T-slots (size*number*distance : 16 * 3 * 70 mm
6. Longitudinal feed : 24~707 mm/min (12 steps)
7. Rapid longitudinal traverse : 2160 mm/min
8. Rapid vertical traverse : 680 mm/min
