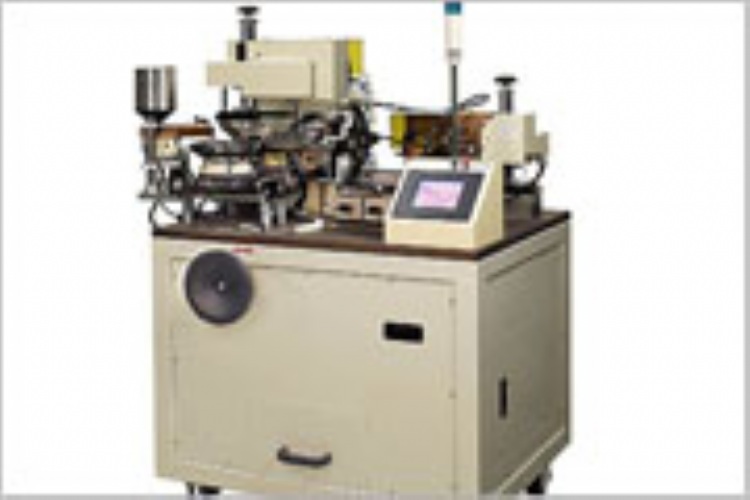

CHIP Component Single-Double Side High-Speed Auto Marking Machine
Model: CPMK-2B
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Printing Ink Making Machines
Characteristics
CHIP Component Single-Double Side High-Speed Auto Marking Machine CPKM-2B mainly focuses at the marking of CHIP series and smaller components, the major design of platform is CAM-oriented, therefore, the machine could be operated in high speed and kept in stable for a long time, the condition of detecting control is complete and the machine has high safety, it is applied to the high-speed marking of singe-double side CHIP components.
Specifications
Model No.: CPMK-2B
Power Supply: Single phase, AC 220V 50/60Hz
Dimension (L x W x H): 105 x 88 x 156 cm (Double side), 93 x 88 x 156 cm (Single side)
Ink: UV Ink
Air Pressure: 4~6 kg/cm2
Application Range: Products, which marking height > 0.7mm, is acceptable.
Throughput: MAX 220 pcs/min
Weight: 250kg(Single side), 300 kg(Double side)
