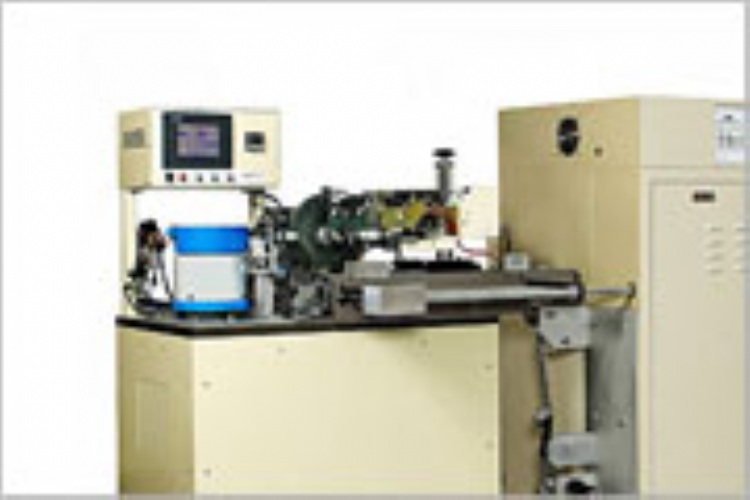

Silver-paste / Gold-paste coating and drying equipment
Model: YLSCT-02A
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Coating Equipment
Characteristics
The ceramic tubes silver paste fixed-thickness coating and pre-dryer equipment YLSCT-02A (Machine type: Coating Machine) is designed for covering silver paste at the ceramic tubes, or curved-surface components, it has functions of stable coating thickness and pre-dryer for tubular components, components of surface without reverse angle and coating-film sticking on the surface side. The whole design and mechanism ensure that he surface doesnt be stained with coating completely; film thickness could be set and controlled within the specification, and is steady, reliable. The type of coating machine can be divided into full coating, interval coating, or multi-interval coating; the dimension and tolerance all could be controlled within the range of minimum error.
Specifications
Model No.: YLSCT-02A
Power Supply: 1p AC 220V 50/60Hz
Dimension (L x W x H): 226 x 200 x 170 cm
Coating material: Coating Silver paste (or other similar semi-solid state alloy), oil ink, etc.
Coating Thickness: 2 ~ 25 gm
Application Range: p3.5 ~ p 10P L= 6 ~ 12 P
the other specifications, which could be changed, depending on different dimensions
Throughput: MAX 20~24 pcs / minC
Air Pressure:4~6 kg/cm2
Weight: 650 kg
