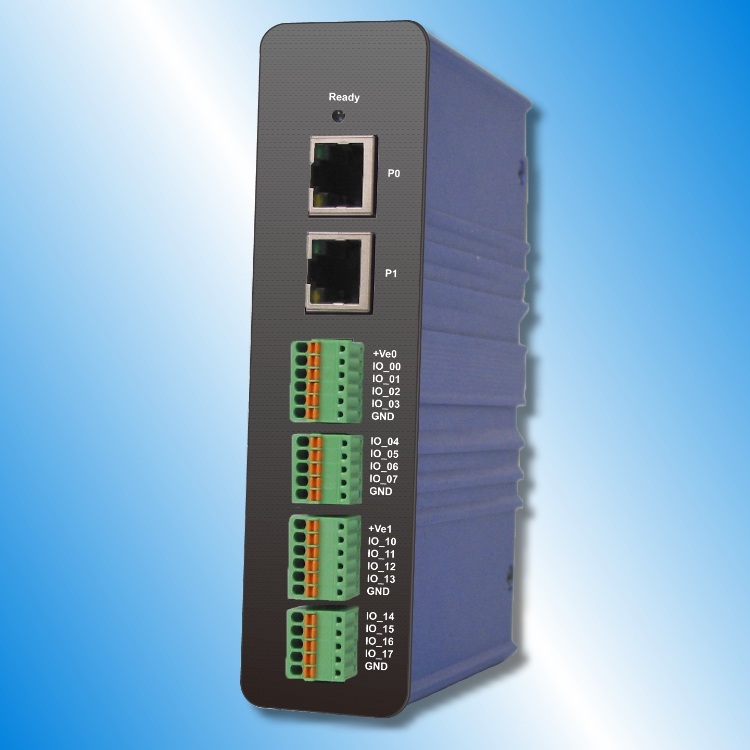

Ethernet Module (16 I/O)
Model: EMD-8216
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
*Over-voltage protection on digital input
*Various IO combinations : 16-bit configurable I/O’s, any bit can be input or output
*Input counter function
*High drive capacity on digital output
*IP re-assignment
*UDP and TCP/MODBUS protocol
*Peer to peer response time < 2ms
*Standalone control function
*Software key function
Specifications
Digital Input
*Input Points : max 16 (Configurable)
*Logic High Level : 3.15V (min)
*Logic Low Level : 1.35V (max)
*Over-Voltage Protection : 60Vdc (max)
*Over-Current Protection : 50mA (max)
Digital Output
*Relay Output Points : max 16 (Configurable)
*Transistor Capacity : 500mA (peak), 45Vdc (max)
*Standalone function : 32 steps control in struction
Ethernet
*10/100M auto switch x 2 port
*WDT : 1~1000sec based on 0.1 sec time base for communication discontinuity detect
*Response time 2ms
General
*Power Requirement : 12Vdc ~ 24Vdc
*Operation Temperature : 0°C ~ +70°C
*Storage Temperature : -20°C ~ +80°C
*Operation Humidity : 5% ~ 95% RH, non-condensing
*Dimensions : 107.6(D) * 135.8(W) * 34(H) mm, 4.3(D) * 5.4(W) * 1.4(H) in
