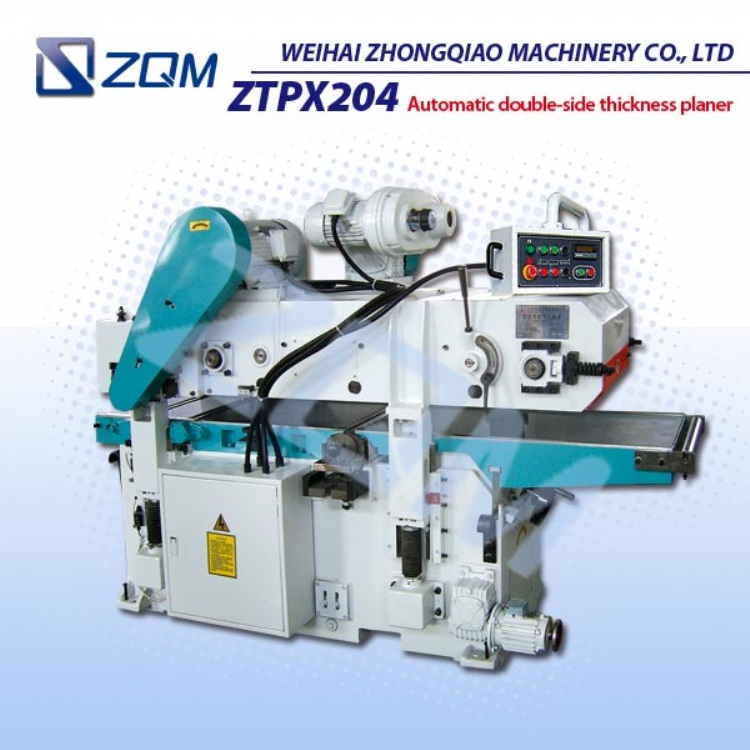

Automatic Double-Side Thicknesser Planer (ZTPX204)
Model: ZTP*204
Category: Woodworking Machinery Industry / Planing & Moulding Machinery / Double Surface Planer
Characteristics
ZTPX204 AUTOMATIC DOUBLE-SIDE THICKNESS PLANER is the heavy duty model developed by ZQM. It has perfect performance and high working efficiency. One piece cast iron frame with aging treatment, providing sufficient stability. The workbench adopts special wear-resistance material so can ensure the using life. It adopts spring claw feeding system, providing adjustable pressure and perfece smooth feeding performance, so can ensure the final surface of the board.
Specifications
PARAMETER Model ZTPX204 ZTPX206 Max. working width (mm) 430 610 Max. working thickness (mm) 120 120 Min. working thickness (mm) 10 10 Min. planing length (mm) 260 320 Max. planing depth of upper arbor (mm) 5 5 Max. planing depth of bottom arbor (mm) 5 5 Feeding speed (m/min) 4-16 4.1-19.5 Cutting circle diameter of arbor (mm) 101 125 Arbor rotating speed (rpm) 5600 4500 Upper arbor motor power (kw) 7.5 11 Bottom arbor motor power (kw) 5.5 7.5 Feed motor power (kw) 1.5 2.2 Lifting motor power (KW) 0.37 0.37 Overall dimension(cm) 235 x 90 x 170 255.4 x 111.7 x 167.7 Weight (KGS) 2500 3200
