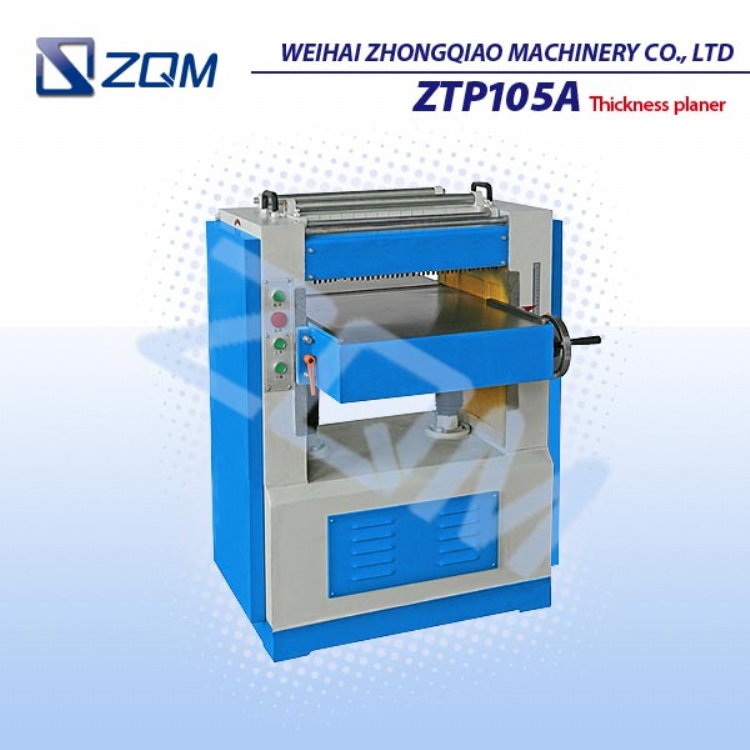

Thickness Planer (ZTP105A)
Model: ZTP105A
Category: Woodworking Machinery Industry / Planing & Moulding Machinery / Single Surface Planer
Characteristics
ZTP105A THICKNESS PLANER can be used to plane the stock surface smooth out a poorly finished surface, mill the stock thickness to resultant one, and mill multistock to the same thickness. It can be separated into single-side and double-side thickness planer.
Specifications
PARAMETER Model ZTP104 ZTP105A ZTP107A Max. working width (mm) 400 500 700 Min. working length (mm) 200 200 300 Working thickness arrange (mm) 10-120 3-120 3-120 Arbor speed (rpm) 5270 6000 6000 Max. planing depth (mm) 4 3 3 Feeding speed (m/min) 10.2 8 8 Motor power (KW) 2.2 4.5 6.0 Overall dimension (mm) 670 x 650 x 850 890 x 910 x 1100 1000 x 910 x 1120 Weight (KGS) 170 550 700
