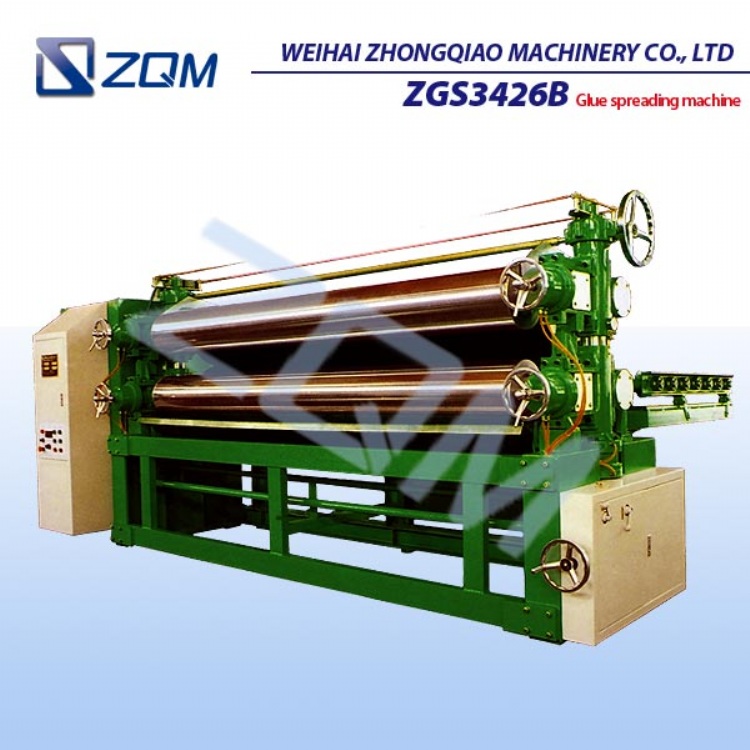

Automatic Double Side Veneer Glue Spreader (ZGS3426B)
Model: ZGS3426B
Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Glue Spreader
Characteristics
ZGS3426B Automatic DOUBLE SIDE GLUE SPREADER is the newest model which can be used in plywood and woodworking industry. The operator can adjust the daylight between glue and doctor roll by the hand wheel freely; Also can adjust the glue consumption according to the different technologies through adjusting the air pressure governor.
Specifications
PARAMETER Model ZGS3426B Glue roll diameter (mm) 415 Doctor roll diameter(mm) 290 Glue roll length(mm) 2700 Working thickness (mm) 3-90 Feeding speed (m/min) 30-90 Motor power (KW) 9 Net weight (kw) 6100 Overall dimension(cm) 434 x 280 x 254.5
