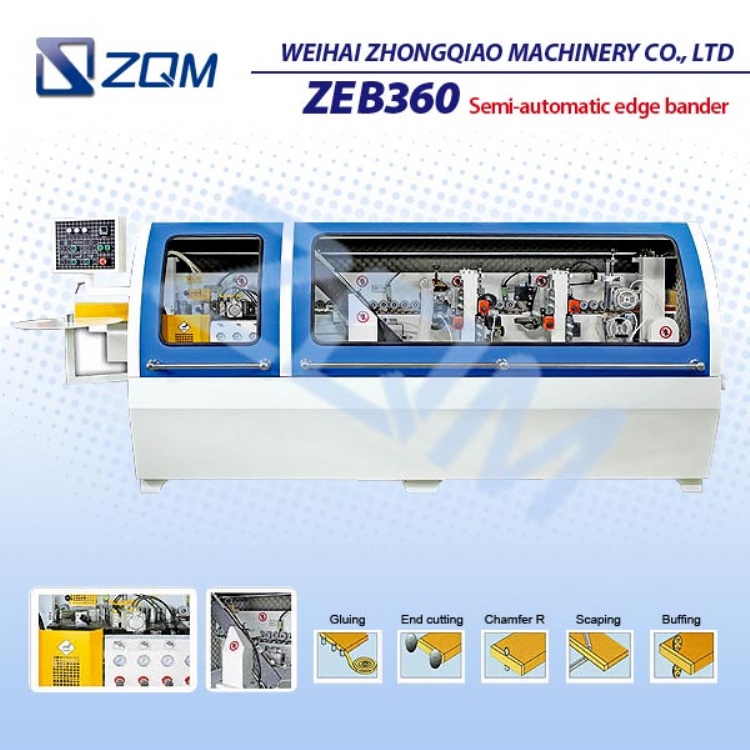

Automatic Mutiple Edge Bander (ZEB360)
Model: ZEB360
Category: Woodworking Machinery Industry / Bonding/ Pressing/ Forming Machinery / Automatic Edge Banding Machine
Characteristics
ZEB360 EDGE BANDER is a Multiple Automatic Edge Bander of WOODWORKING industry, which is used to seal the roll of plastic sealing belt or solid wood strip on the edge of flakeboard, cabinet board, MDF etc by thermosol to make man-made board more beautiful and durable. Feature: A. Automatic working process, including feeding veneer, spreading, feeding and cutting off sealing belt, cutting the both of sealing belt end, milling and polishing sealing belt edges etc. B. Highly automatization and working efficiency, C. The quality of sealing edge is high, structure is compact and its working condition is steady. It is an ideal machine for making board furniture factory.
Specifications
PARAMETER MODEL ZEB360 Panel length(mm) Min. 120 Panel width(mm) Min. 80 Panel thickness(mm) 12-55 Edge width(mm) 15-58 Edge thickness(mm) 0.4-3 Feeding speed(m/min) 9.3 Total power consumption(kw) 6.36 Required air pressure(Mpa) 0.7 Net weight(kg) 960 Overall dimensions(L× W× H) 3650× 850× 1600
