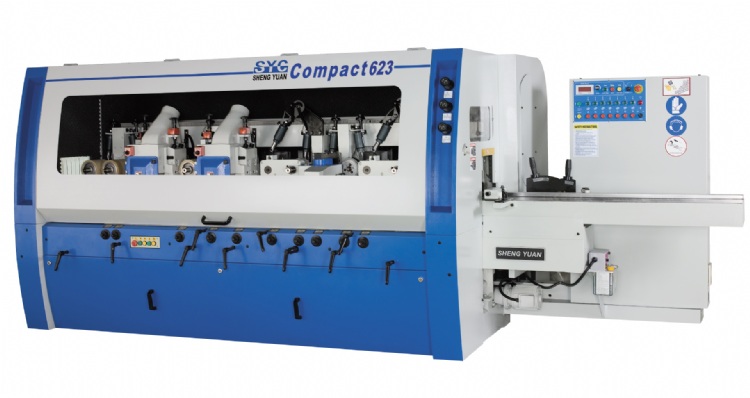

4 SIDE MOULDER-COMPACT SERIES
Model: SYC-623C
Category: Woodworking Machinery Industry / Planing & Moulding Machinery / Four Side Planer
Characteristics
All moulders awarded CE certification. Faster feed speed of up to 24 meters a minute are standard. Programmable controller provides convenient depth of cut settings.(Optional) Adjustment of each spindle can be easily performed by using the front adjustment lever. The full safety enclosure serves as a chip guard and helps to reduce noise. Each spindle is driven by an individual motor for powerful drilling and easy control. Pneumatic pressure of the feed rollers can be easily set to provide an outstanding feeding effect. Table surface is hard-chrome plated for maximum wear resistance. All manually adjusted turning parts are housed in dry bearings for oil-free lubrication. One-piece, cast iron machine frame is specially heat treated for maximum stability and rigidity as standard configuration.
Specifications
Working Width (at a tool cutting circle of 125mm) 15-230mm (0.59"-9.1") Working Height /Thickness(at a tool cutting circle of 125mm) 10-150mm (0.39"-6") Number of Spindles, min-max 1 to 8 Heads/Spindles Basic motor Capacity of Feed - Variable Speed Drive 4KW / 5HP Feed Speeds, infinitely variable 6 - 24 m/min (20 - 80 fpm) Basic Motor Capacity per Spindle 7.5HP/5.5KW Vert & 10HP/7.5KW Hor. Spindle Speed 6000 RPM Spindle Diameter 40mm (1.6") Tool cutting circle, 1st Bottom spindle, min-max 125-160mm (4.9"-6.29") Tool cutting circle, Vertical spindle(s), left, min-max 112-200mm (4.4"-7.9") Tool cutting circle, Vertical spindle(s), right, min-max 112-200mm (4.4"-7.9") Tool cutting circle, Horizontal spindles, Top, min-max 112-200mm (4.4"-7.9") Tool cutting circle, Borizontal spindles, Bottom, min-max 112-200mm (4.4"-7.9") Feed Roll Diameter 140mm (5.5") Top Feed Roll width - each roll with multiples on all Top shafts 2 x 50mm (2") Bottom Feed Roll(s) Width Full Width Pneumatic Pressure for Feed Rolls, max 6 bar (85psi) Adjustment range for Infeed Table 10mm (0.4") Adjustment range for Edge-jointing Fence 10mm (0.4") Adjustment range of Vertical Ppindles (axial) 40mm (1.58") Adjustment range of Horizontal Spindles (axial) 20mm (0.79") Length of the Infeed Straightening Table 2M (78.7") Diameter of Dust Hood for Vertical Spindle(s) 125mm (5") Diameter of Dust Hood for Horizontal Spindle(s) 125mm (5") Chainless Cardan Shaft Feed System w/ HD Gearboxes Standard Motorized vertical adjustment of Feed Beam Standard Lateral pressure rollers opposite first right spindle Spring Tensioned Standard Sectional Radial Lift - Linkage Style Top Head Chipbreakers Spring Tensioned Standard Mechanical digital readouts for the pressure shoes & hold-down unit Standard Mechanical Digital Reaouts on all Spindle Axis Single - Std. Central location of all lubrication points along the front of the machine Standard Table Lube System Manual 1 shot Mechanical digital readouts for the pressure shoes & hold-down unit Standard Mechanical Digital Reaouts on all Spindle Axis Single - Std. Central location of all lubrication points at the front of the machine Standard Table Lube System Manual 1 shot Full Sound and Safety Enclosure Standard
