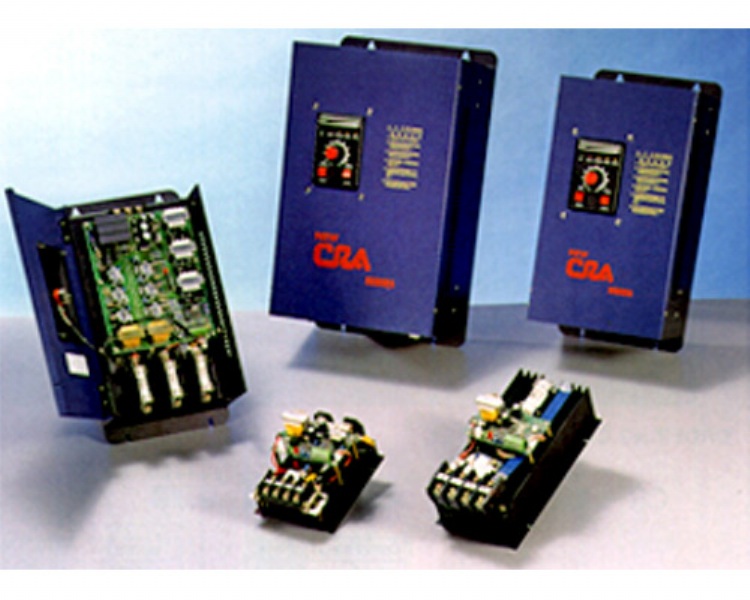

S.C.R. / S.S.P.R. Power Regulator
Model: S.C.R. / S.S.P.R.
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
S.C.R.
1.Phase angle turn-on.
2.Power is subjected to phase wave during the performance.
3.High accuracy rating.
4.Easily repair, save power, high efficiency and longer use-life
5.Best linear control.
6.Isolation is up to 2500V AC.
S.S.P.R.
1.Zero crossing turn-on.
2.Full wave per cycle during the performance.
3.Height accuracy rating.
4.Easily repair, save power, high efficiency and longer use-life.
5.Best linear control.
6.Isolation is up to 2500V AC.
Specifications
Power Supply: 110/220/380/440V AC ± 10% 50/60 Hz
Standard of Current Range: 20/30/40/80/100/120/160A
Input: Current: 4-20mA DC; Voltage: 1-5V DC
Output Voltage Range: 0-95%(Single phase) 0-100%(three phase)
Constant-Voltage Characteristics: output accuracy ± 1%
Applicable Load: Resistive Load, Inductive Load, Capacitive Load.
Indication: Red LED is bright
Power Source: Green LED is bright
Control Mode: Phase angle turn-on
Ambient: Temperature:0-50℃,Humidity:90% RH Below
Power Supply: 110/220/380/440V AC ± 10% 50/60 Hz
Standard of Current Range: 20/30/40/80/100/120/160A
Input: Current: 4-20mA DC(Standard),0-20mA DC(Option);
Voltage: 1-5V DC(Standard),0-5V DC(Option)
Output Voltage Range: 0-100%
Constant-Voltage Characteristics: None
Applicable Load: Resistive Load
Indication: Red LED is bright
Power Source: Green LED is bright
Control Mode: Zero angle turn-on
Ambient: Temperature:0-50℃,Humidity:90% RH Below
SPECIFICATIONS:
Load Voltage: AC 220 V / 380 V / 440V
Load Current: AC 10A~500A
Signal: DC 4~20mA, DC 1~5V
Control Mode: Phase Angle、Zero Crossing
Output Voltage: 0~95%
Ambient Operating Temperature: -10~50 ℃ 90% RH Below
