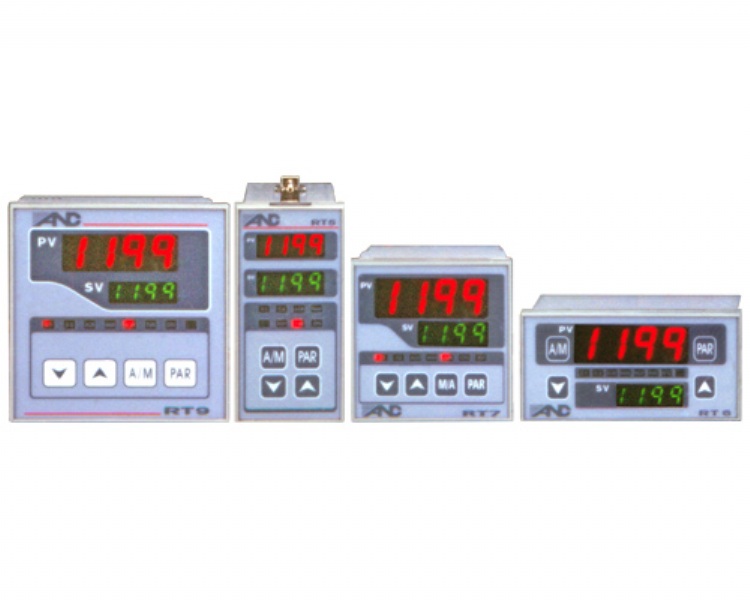

RT Series Temperature Controller
Model: RT5.RT9
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
●High accuracy
●Automatic Tune of P.I.D.
●Continuous automatic adaptive tune of
P.I.D. during operation.
●Wide range of power supply (Range from
85 to 265V on AC voltage.)
●Other available functions:
Valve motor drive (Open loop type).
●With a P.C. networked over the RS485 bus.
Specifications
Input: TC, RTD, LINEAR
Range: 0~1999
Control: ON/OFF, P, PI, PD, PID
(P: 0~300%, I: 0~3600 sec, D: 3600 sec)
Accuracy: 1℃
Output: Relay 3A/240V; Voltage 20VDC/20mA,
Line 4~20mA; Motor Control, Others
Alarm: 2 Channels
Input RSP: Type of In, Sampling Time
Communication: RS-232, RS-485
Voltage: AC 90V~260V, 50Hz/60Hz
Power Consumption: 5VA 以下
Ambient Temp.: 0~50℃
Humidity: RH 80 % below
Size: 48 x 96, 96 x 96 mm
