Auto Band Sawing Machines, Hydraulic Type

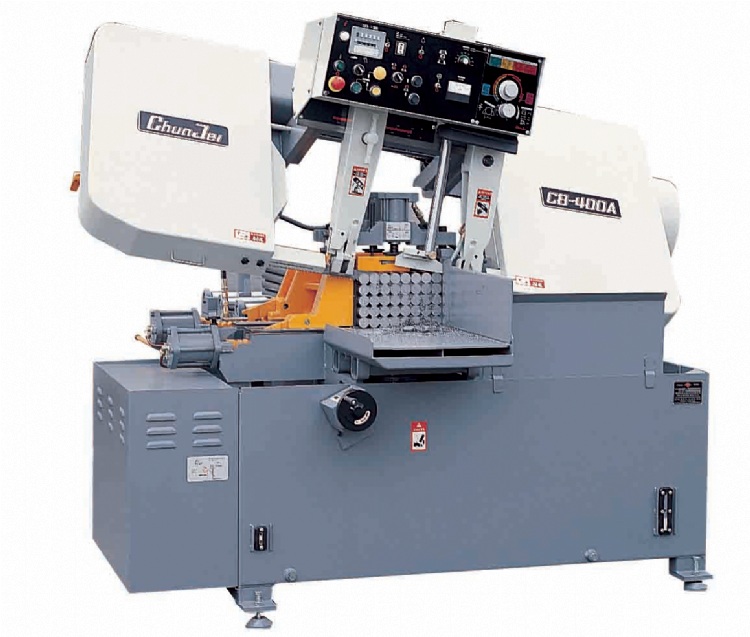

Model: CB-400A
Category: Machine Tools / Sawing Machines / Auto Band Sawing Machines, Hydraulic Type
Characteristics
●Unique acceleration and deceleration design in stock feed system ensures accurate stock feed length even with heavy load.●Selective feed carriage rest position, either at the front for maximum clamping (bundle stock) or at the rear for optimum efficiency (single stock), results in better accuracy, efficiency and blade life.●Maximum stock feed length up to 4500 mm (with 9 times multiple feed).●Enlarged coolant tank for better cooling effect and chip filtration optimize the total performance.●Adopt PLC programmable controller for easy maintenance.●The blade and cutting conditions are constantly monitored by blade speed digital indicator and cutting load meter.●Digital read-out for feed length setting, accuracy within 0.2mm.●Cutting height is set automatically by rapid approach sensing rod for maximum efficiency.●Automatic shut-off when blade slips, blade breaks, out of stock and cut pieces reached preset number.※please read the E-catalogue for further detail※
Specifications
●ADAPTIVE CUTTING FEED CONTROL： Automaic adjustment of the head descend speed according to the resistance from cutting maintains optimim cutting feed at time snd results in longer blade life. ●BUNDLE CUTTING： Dual vice clamping with top clamp by the bundle attachment enable steady and fast bundle cutting ●HYDRAULIC POWERED CHIP CONVEYOR： Chip conveyor powered by hydraulic motor synchronized with cutting provides more efficient cutting operation ●HYDRAULIC BLADE TENSIONING： Hydraulic blade tensioning permits easy blade installationing. Automatic blade tension release during machine power-off ensures long blade life. ●CAM-LOCK BLADE GUIDES： Cam-lock type blade guides provides rapid and precise blade setting,minimizes operational error and saves blade setting time. ●STOCK FEED VICE： Double-retracting stock feed vice is ideal for feeding large or crooked stock,which opens both sides of the vice during the stock take-up cycle.with the sequential valve controling the clamping,the right-angle between the blade and the vice is assured..※please read the E-catalogue for further detail※
