Band Saws, Horizontal Type

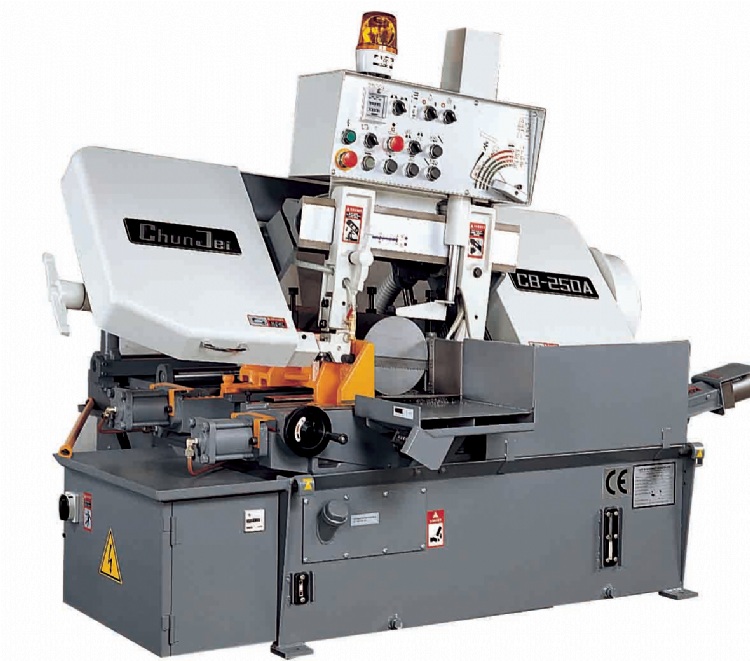

Model: CB-250A
Category: Machine Tools / Sawing Machines / Band Saws, Horizontal Type
Characteristics
●Selective feed carriage rest position, either at front position for maximum stock clamping or at rear position for maximum efficiency. ●Maximum stock feed length up to 3600mm (with 9 times multiple feed). ●Deceleration at the end of stock feed stroke to eliminate the impact influence to stock feed accuracy. ●Coolant channels in blade guide inserts for optimum cooling effect. ●Spring loaded ratchet type blade tensioning lever which locks the lever once the set blade tension has been reached, safe, stable and easy to operate. ●Adopt PLC programmable controller for easy maintenance. ●Digital read-out for feed length setting, accuracy within 0.2mm. ●Cutting height is set automatically by rapid approach sensing rod for maximum efficiency. ●Automatic shut-off when blade slips, blade breaks, out of stock and cut pieces reached preset number..※please read the E-catalogue for further detail※
Specifications
●CUTTING DATA INDICATION： User-friendly design which guides the operator to easily set the most appropriate blade speed according to the stock material,size and shape for maximum effciency ●UNIQUE CUTTING FEED CONTROL： The proportiona cutting feed rate(heasd descend speed is in proportion with the blade speed)and adaptive cutting feed control(head descend speed is automaically adjusted according to cutting resistance)ensure optimum cutting condition and long blade life. ●ECONOMICS： The world shortest stockn end length is obtained by the 4 point stock clamping design,which leaves the stock end length as short 45mm ●CUTTING DATA INDICATION： User-friendly design which guides the operator to easily set the most appropriate blade speed according to the stock material,size and shape for maximum effciency ●UNIQUE CUTTING FEED CONTROL： The proportiona cutting feed rate(heasd descend speed is in proportion with the blade speed)and adaptive cutting feed control(head descend speed is automaically adjusted according to cutting resistance)ensure optimum cutting condition and long blade life. ●PERFECT FOR 4 SHIFT OPERATION： The hydraulic pump runs only for head lift,stock feed and initiating the stock clamp(all in about 15 seconds)periodically between cuts,thus the oil temperature being kept low for long run operation snd tremendous saving on enegy cost ●CUTTING DATA INDICATION： User-friendly design which guides the operator to easily set the most appropriate blade speed according to the stock material,size and shape for maximum effciency ●UNIQUE CUTTING FEED CONTROL： The proportiona cutting feed rate(heasd descend speed is in proportion with the blade speed)and adaptive cutting feed control(head descend speed is automaically adjusted according to cutting resistance)ensure optimum cutting condition and long blade life. ●SAFETY BANDWHEEL GUARDING： Interlocked and Tamper-Proof design provide maximum safety ●CUTTING DATA INDICATION： User-friendly design which guides the operator to easily set the most appropriate blade speed according to the stock material,size and shape for maximum effciency ●UNIQUE CUTTING FEED CONTROL： The proportiona cutting feed rate(heasd descend speed is in proportion with the blade speed)and adaptive cutting feed control(head descend speed is automaically adjusted according to cutting resistance)ensure optimum cutting condition and long blade life. ●BUNDLE CUTTING： Dual vice clmping with top clamp by the bundle attachment enable steady and fast bundle cutting ●CUTTING DATA INDICATION： User-friendly design which guides the operator to easily set the most appropriate blade speed according to the stock material,size and shape for maximum effciency ●UNIQUE CUTTING FEED CONTROL： The proportiona cutting feed rate(heasd descend speed is in proportion with the blade speed)and adaptive cutting feed control(head descend speed is automaically adjusted according to cutting resistance)ensure optimum cutting condition and long blade life. ●CHIP CONVEYOR： Chip conveyor synchronized with cutting provides more efficient cutting operation ..※please read the E-catalogue for further detail※
