Full-Automatic CNC Vision Measuring Machine YMM-ACNC Series

Enlarge

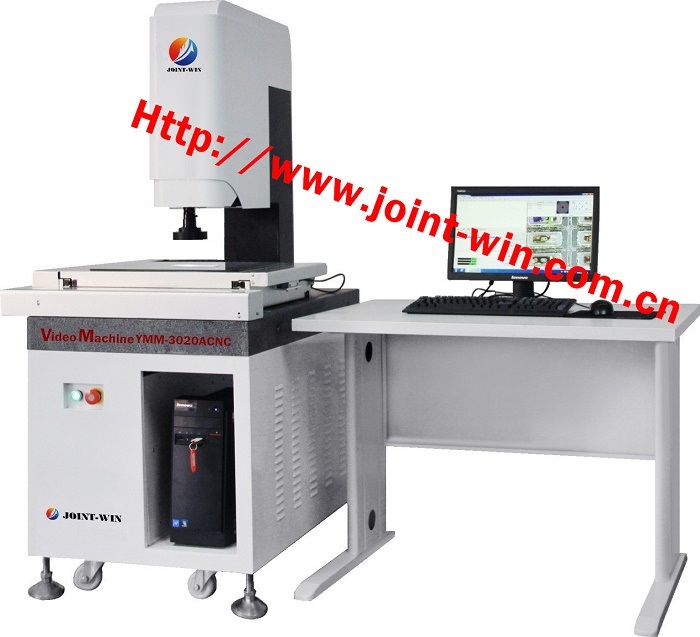

Full-Automatic CNC Vision Measuring Machine YMM-ACNC Series

Model: YMM-ACNC

Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts

Online Inquiry

Characteristics

Machine Features
It realized 3 axises full-automatic measurement
Main parts all are imported, and are assemblied and debugged strictly & normally.
Three axises CNC controlling system and full-automatic measuring function
The whole system is equipped with high-defination step zoom lens
Adopting high-definition special image card to ensure measuring image's sharpness
The whole system adopts HIWIN high-precision P grade linearity guide, Germany high-precision toothless screw
It adopts open-type high-resolution linear scales, the accuracy reaches to 1um

Specifications

Model Items	YMM-3020ACNC	YMM-4030ACNC	YMM-5040ACNC
Measuring Range(mm	300200180	400300180	500400180
Machine Size:	85013001550	100014001550	120015001550
Weight (Kgs)	250	300	450
Loading Weight(Kgs)	20	25	25
X.Y Axis Measuring Accuracy	3+L/150 (um)
Z Axis Measuring Accuracy	5+L/100 (um)
Repeatibility	0.005(um)
Movement Speed	X.Y axis=0~150 (mm/S)
	Z aixs=0~100 (mm/S)
Linear Scales	Open-type glass linear scales with resolution of 1.0um
CCD Camera	1.3Mpixel high definition color CCD camera
Guide	X.Y axis: Precise V-Type guide ,
	Z axis: HIWIN P grade precision linearity guide,
Screw	X.Y axis: Toothless screw
	Z axis: TBI grinding-grade ball guide screw
Optical System	6.5:1 step zoom lens
Magnification	optical magnification	0.7X~4.5X
	Image Magnification	24X~158X
Software	CNC full-automatic measuring software
Illuminations	Contour Illumination	LED cold illumination, 256 grades brightness adjustable
	Surface Illumination	4 rings 8 divisions LED cold illumination and each division has individual controlling system, 256 grades brightness adjustable
Movement Controlling System	SBK4000 full-closed loop controlling system
Motor	Tiger AC synchronous servo motor
Operation Way	Software+joystick
