Full-automatic CNC Vision Measuring Machine YMM-ECNC Series

Enlarge

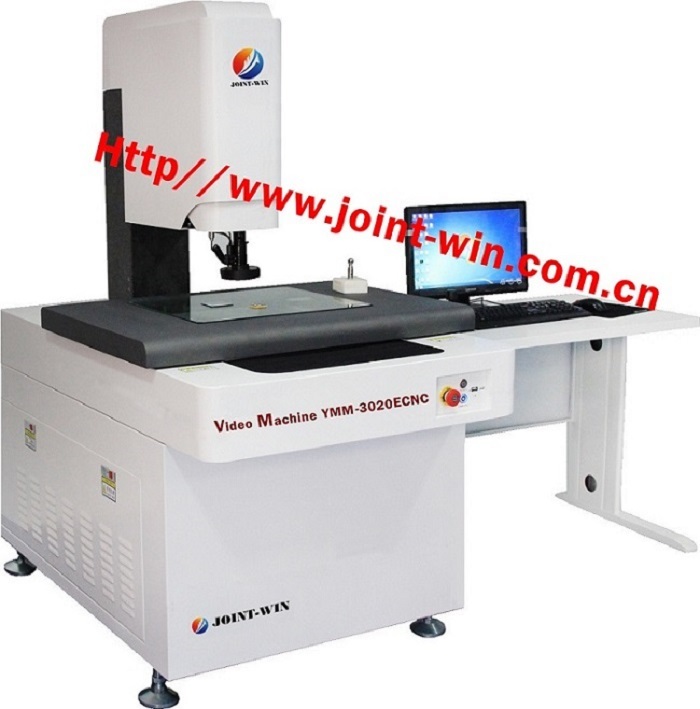

Full-automatic CNC Vision Measuring Machine YMM-ECNC Series

Model: YMM-ECNC

Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts

Online Inquiry

Characteristics

Machine Features
1. The stage uses aviation-type high-hard aluminum alloy material which is light, small inertia, and is suitable for
high-speed movement to ensure a long-term machine stability.
2. Main parts all are imported, and assemblied and debugged strictly & normally.
3. Three axises CNC controlling system and full-automatic measuring function
4. The whole system is equipped with GPS zoom lens to really realize map navigation function
5. It adopts high-definition special image card to ensure measuring image's sharpness
6. The whole system adopts HIWIN high-precision SP grade linearity guide, TBI grinding grade ball guide screw
7. It adopts open-type high-resolution linear scales, the accuracy reaches to 1um

Specifications

Technological Parameters:

Model Items	YMM-3020ECNC	YMM-4030ECNC	YMM-5040ECNC
Measuring Range(mm	300200180	400300180	500400180
Machine Size:	145010501650	160012001650	180014001650
Weight (Kgs)	450	500	650
Loading Weight(Kgs)	20	25	25
X.Y Axis Measuring Accuracy (um)	3+L/200
Z Axis Measuring Accuracy (um)	5+L/200
Repeatibility(um)	0.002
Movement Speed(mm/S)	X.Y axis=0~400
	Z aixs=0~100
Linear Scales	Open-type glass linear scales with resolution of 1.0um
CCD Camera	1.3Mpixel high definition color CCD camera
Guide	HIWIN SP grade precision linearity guide
Screw	TBI grinding-grade ball guide screw
Optical System	6.5:1 GPS zoom lens
Magnification	optical magnification	0.7X~4.5X
	Image Magnification	24X~158X
Software	CNC full-automatic measuring software
Illuminations	Contour Illumination	LED cold illumination, 256 grades brightness adjustable
	Surface Illumination	4 rings 8 divisions LED cold illumination and each division has individual controlling system, 256 grades brightness adjustable
Movement Controlling System	SBK4000 full-closed loop controlling system
Motor	: Tiger AC synchronous servo motor
Operation Way	Software+joystick
