Video-Type 3D Vision Measuring Machine YMM-HVT Series

Enlarge

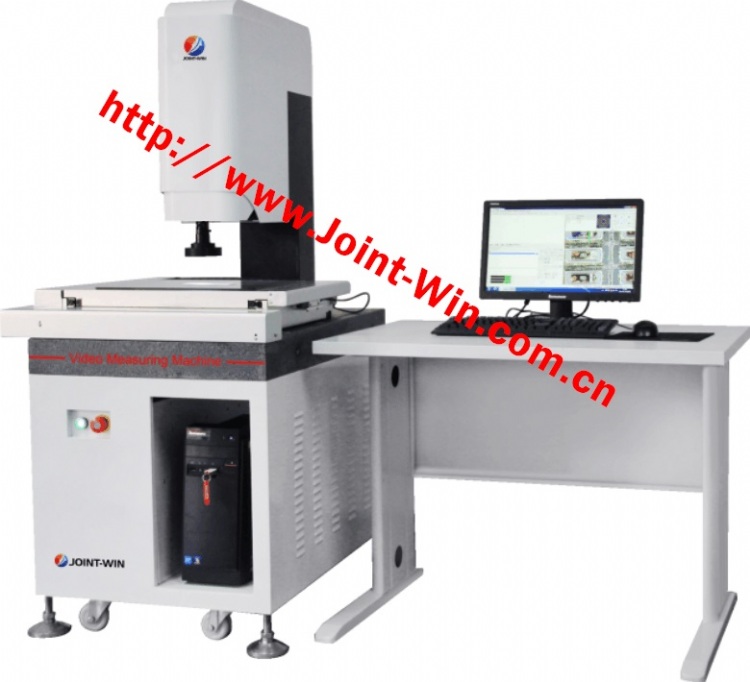

Video-Type 3D Vision Measuring Machine YMM-HVT Series

Model: YMM-HVT

Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts

Online Inquiry

Characteristics

This machine is suitable for all 2D measurements. It is widely used in the industries of machinery, electronics, watch, plastic, module etc. Its functional YR-VT measuring software can realize the functions of all 2D flatness measurements, on the map, profile scanning, special SPC statistics, manual CNC, Macroscopic measurement and so on. Z axis adopts granite column, which makes Z axis non-contact precise measurement and flatness measurement available

Specifications

Item Model	YMM-3020HVT		YMM-4030HVT	YMM-5040HVT
X.Y.Z axis Travel (mm)	300200200		400300200	500400200
X.Y.Z Resolution	0.001mm
A X.Y Axis accuracy	(3+L/200)um
Z axis Error	≤0.01mm
Repeatability	3um
Measuring mode	Video type
CCD Camera	SBK-HC595 1/3’ 700TVL colorful high definition CCD camera（Band white balance function）
Magnification	24X-158X (2X and 0.5X objective is available)
Zoom Lens	0.7～4.5X High definition stepped zoom lens
Working distance	115mm (video)
Measuring Software	YR-E measuring software ( it can realize the flatness measurement and the accurate measurement of Z axis )
Lifting Column	Stable granite column
Instrument Base	000 grade stable granite base
Illumination	Surface and contour illumination both use brightness adjustable LED shadowless lam, contour uillumination adds condenser to realize parallel illumination
Dimension (LWH) (mm)	75013001500	75013001500		90014001500
Table Glass Size (mm)	240*150	340*250		440*350
Stage Loading Weight	25kgs
Machine Weight (Kgs)	160	Machine Weight (Kgs)		160
