Tool-Maker’s Microscopes STM-505R

Enlarge

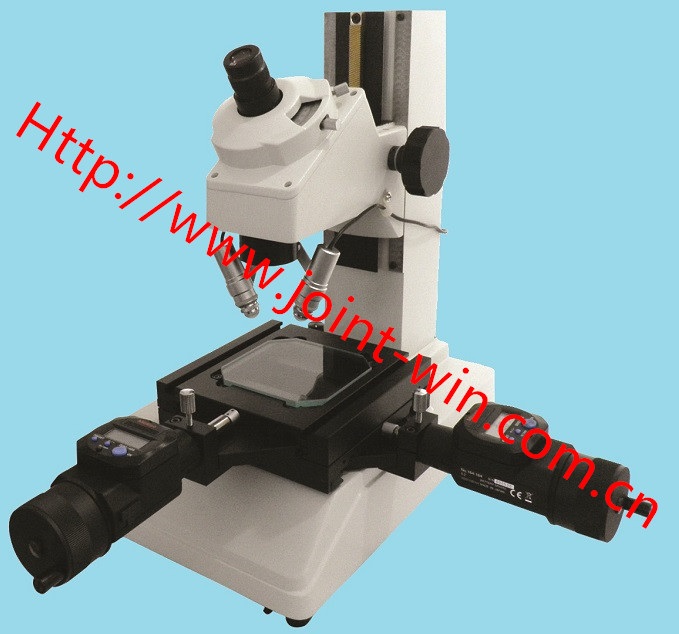

Tool-Maker’s Microscopes STM-505R

Model: STM-505R

Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts

Online Inquiry

Characteristics

STM-505R tool-maker’s microscope is an excellent measuring instrument for non-contact inspection and 2D precision measurement. It is suitable to measure the small parts in the metrology department and production line, and it can be installed with digital measure heads, CCD adaptor, CCD camera, digital cross line generator, monitor to be a 2D vision system

Specifications

Specifications ItemModel STM-505R X.Y Axis Travel 50*50mm Maxi Working Height 115mm Maxi Loading Weight 5Kgs Measuring Head Origin Mitutoyo electronic measuring head Resolution of Measuring Head 0.001mm Machine Head Monocular (aimer is adjustable) Angle Dial Rotary angle: 360°; Minimum angle reading: 6′ Eyepiece (176-116) 15X view diameter: 13mm Objectives(176-138) 2X working diameter: 67mm Total Magnification 30X Contour Illumination 24V/3V tungsten bulb with green filter, the brightness is adjustable Surface Illumination 24V/3V tungsten bulb, the brightness is adjustable Power Supply 110/220V AC 50/60Hz Instrument Dimension 210*333*391mm Machine Weight 13.5Kgs Auxiliary Objectives A group of partition board; 1 piece of blue filter Accuracy (3+L/50)um Optional Accessories 1X, 3X, 10X Objective,
