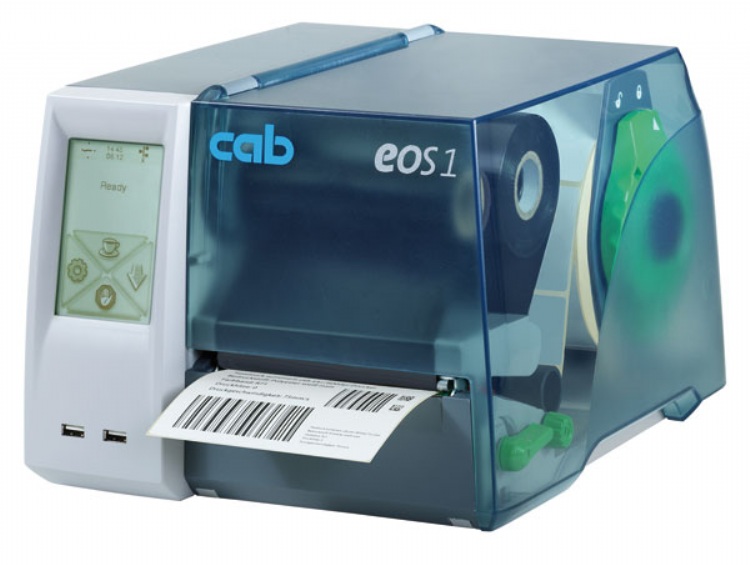

barcode printer
Model: scanner
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
Printhead
Printing method Thermal transfer / Thermal direct
Print resolution dpi 203 300
Print width up to mm 108 105.7
Print speed mm / s 30, 40, 50, 75, 100, 125
Material
Total diameter up to:
EOS1: 152.4 mm
EOS4: 203.2 mm
Label width: 10 - 116 mm
Label height: 6 - 1000 mm
Ribbon
Ink: outside or inside
Variable length up to: 360 m
Printer dimensions
Height x Depth x Width:
EOS1: 189 mm x 322 mm x 253 mm
EOS4: 245 mm x 412 mm x 264 mm
Electronics
Processor high speed: 400 MHz
RAM: 64 MB
Memory IFFS: 16 MB Flash
Battery buffer for real-time clock with printout of time and date, data storage in the event of a power cut
Interfaces
Serial RS232 C (Option)
USB 2.0 Full Speed Slave for PC (Standard)
Ethernet 10/100 Base T (Standard)
Peripherals connection for cutter (EOS1 Option, EOS4 Standard)
3x USB Master for keyboard, scanner, memory stick or service key
