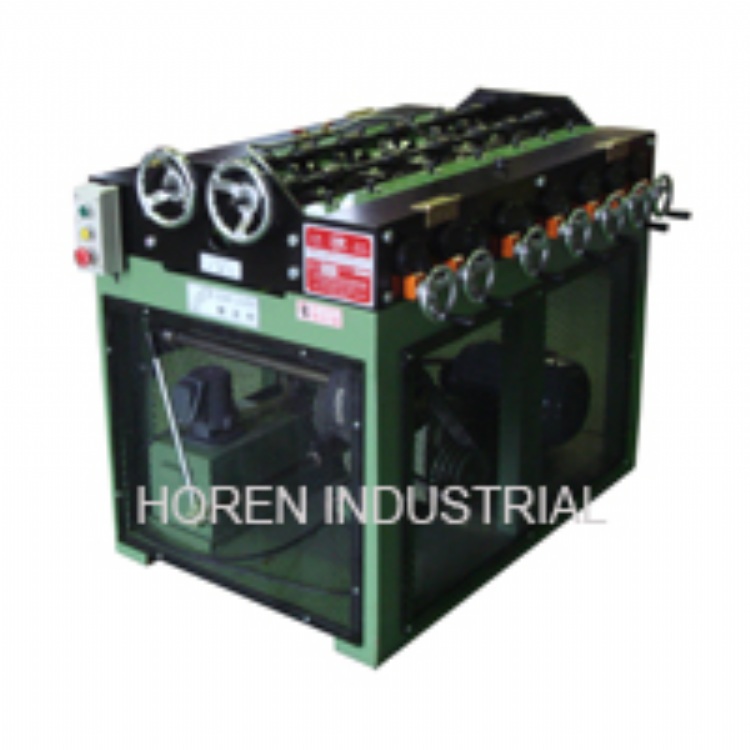

Straightening Machine (Model: ST0314)
Model: ST0314
Category: Machine Tools / Metal Forming Machine Tools / Straightening Machines
Characteristics
Easy installation. Materials are straightening through 14 rollers. The machine is also equipped with 4-speed gearing, which is ideal for various types of metal tube/bar.
Specifications
Motor:3HPx4P
Circulation Motor:1/8HP one set
Roller configuration:14 Rollers x Diameter 60 x 75L
Capacity:
--- Copper/Aluminum/Steel tubes 瓧5.0~15.0mm
--- Copper/Aluminum/Steel rods瓧5.0~12.0mm
Dimension:1230x850x950mm
※ Horizontal adjustment with numerical indicator attached to hand wheel
※ Angular adjustment with scale indicator
