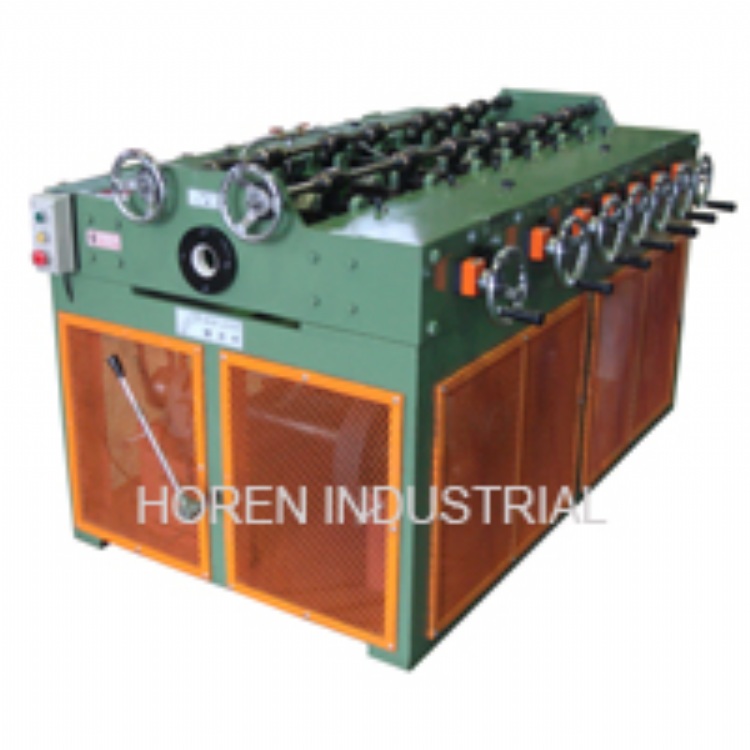

Straightening Machine (Model: ST0514)
Model: ST0514
Category: Machine Tools / Metal Forming Machine Tools / Straightening Machines
Characteristics
Easy installation. Materials are straightening through 14 rollers. The machine is also equipped with 4-speed gearing, which is ideal for various types of metal tube/bar.
Specifications
Motor：5HPx4P
Circulation Motor：1/8HP one set
Roller configuration：14 Rollers x Diameter 80 x 100L
Applicable size range：
--- Copper/Aluminum/Steel tubes 瓧8∼瓧30mm
--- Copper/Aluminum/Steel bars瓧8∼瓧25mm
Dimension：1800x850x1000mm
※ Horizontal adjustment with numerical indicator attached to hand wheel
※ Angular adjustment with scale indicator
