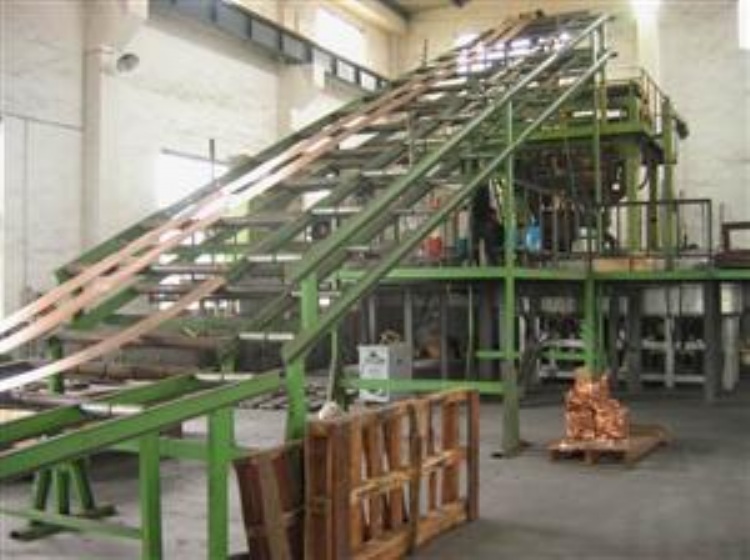

oxygen free copper rod up casting machine
Model: TPSYJ
Category: Machine Tools / Electric Discharge Machines / CNC Electric Discharge Machines
Characteristics
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: JIECHENG dia of casting rod: 8mm,14.4mm,17mm,etc
working hours per year: 7920hours product features: oxygen free copper rod,strip machine line features: continuous production
Packaging & Delivery
Packaging Detail: standard export packing
Delivery Detail: about 90days
Specifications
1.Furnace features:frequency induction furnace
2.Annual capacity:from 1000tons to 12000tons
i Main technical data for the upcasting line
1 Model No.: SYJ0808-30-I3
2 Capacity: 4000 T/Y
3 Furnace structure: 3-body ( 2 of melting, 1 of holding)
4 No. of strands: 8
5 Dia. Of the rod: 8mm-30mm
6 Casting speed: 0-3000mm/min
7 Working hours:: 7200hours / year
8 Level tracing precision: ±2mm
9 Coil size: φ700mm×φ1500mm×φ800mm
10 Melting Speed: 550kg/h
11 Melting power rate: <350kwh/ton
12 Take up method: passive coiling
13 Feeding method: whole piece of copper cathode by electric hoist
14 Upcast driven method: AC servo motor with the drive chain of gapless synchronous belt.
15 Rod clamping method: manual clamping
