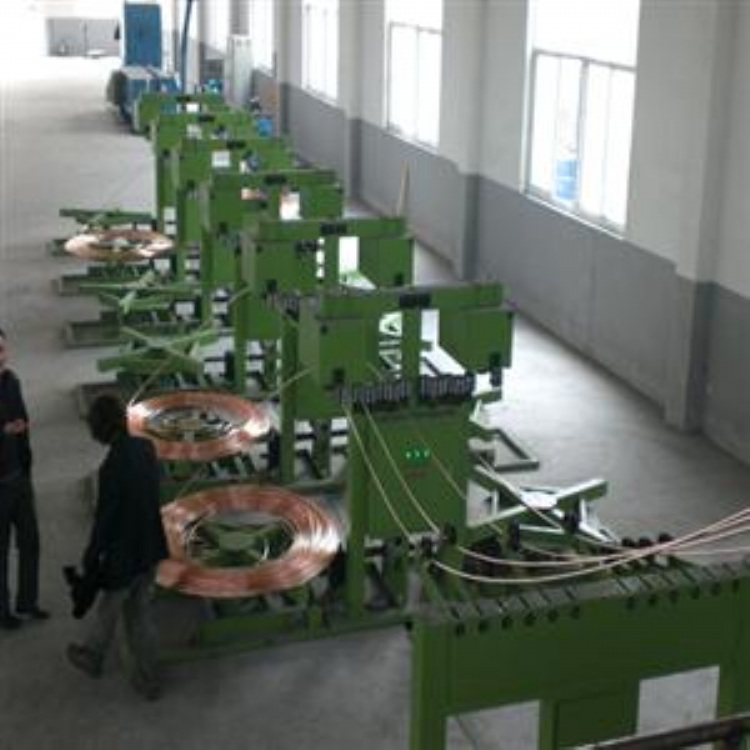

copper vertical casting machine
Model: SYJ1608101220-I3
Category: Machine Tools / Single & Special Purpose Machines / Punch Grinders
Characteristics
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: Jiecheng material: electrolytic copper or copper scrap
annual working hours: 7920hours product features: oxygen free copper rod delivery: 90 working days
Packaging & Delivery
Packaging Detail: standard export packing
Delivery Detail: 90 working days
Specifications
1 dia of casting rods:8mm-25mm
2 oxide content:<10ppm
3 furnace:induction combined
4 tensile streingth:>=38%
i Main technical data for the upcasting line
1Model No.: SYJ1608101220-I3
2Capacity: 3000 T/Y
3Furnace structure:3-body ( 2 of melting, 1 of holding)
5Dia. Of the rod:8mm,10mm,12mm,20mm
4No. of strands: 6
6Casting speed: 0-1200mm/min
7Working hours:: 330days / year
8Level tracing precision:±2mm
9Coil size: Φ700mm×Φ1500mm×Φ800mm
10Melting Speed:600kg/h
11Melting power rate: <350kwh/ton
12Take up method: passive
13Feeding method:whole piece of copper cathode by electric hoist
14Upcast driven method: AC servo motoer with the drive chain of gapless synchronous belt.
15Rod clamping method: manual clamping
16Operating interface: Touch screen
