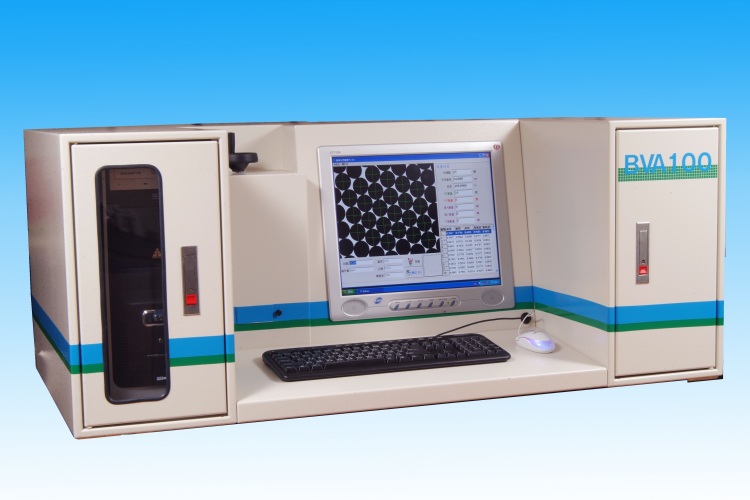

Ball image inspection machine vision systems
Model: BVA100
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Profile Projectors
Characteristics
1 Desktop auto-ball test and measurement equipment, fast, accurate measurements.
(2) Industrial CCD camera and optical lens applicable to harsh environments.
3 high precision, fast and stable.
4.1 TRAY plate design, batch into one kind of ball, according to set requirements specifications tolerances and model.
5 patented intelligent vision measurement system, simply solder ball placement, the system automatically scans the disk TRAY, measurement accuracy of up to 1μm. Use of automated measuring procedures, only the ball into the tin plate TRAY, software, automatic scanning of the solder ball TRAY tray, automatically determine the stacked ball, ball position and the switch is not to avoid the measurement,
6 professional software operation fast precise detection of image analysis and measurement functions, the cultural interface, easy to use.
7 Precision Rapid image analysis to detect solder ball diameter, roundness, roughness.
8 high-speed measurement performance measurement speed 0.4mm 50 balls / sec or more balls.
9 ball measurement data can be output.
Specifications
Used in the BGA. CSP.. MCM. COB. PCB. Diameter: 0.1 ~ 0.76mm ball
