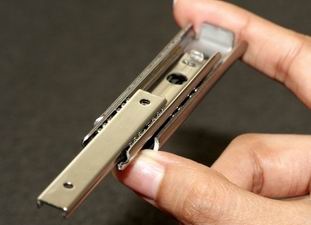

Ball bearing Slide
Model: Ball bearing Slide
Category: Machinery Parts and Components / Machinery Parts and Components / Linear Guideways
Characteristics
EFON Co., Ltd. sold ball bearing slide in electric, printing machine, auto-equipment, switchboard, shell of sheet metal, cash register, ATM, auto vending machine, servo, auto-door, sliding door and medical instrument industry. The major international customers are SONY, Panasonic, Canon, National, etc...
Specific
All products are used ball bearing and precise sliding rail to punch and roller form. It also can do appropriate produce.
Material and Confront environment
The ball slide's materials distinguish between SPCC (Steel Plate Cold-rolled Coil) and SUS304. The ball bearing slide adopted rules that conform to RoHS in European Union, and had product quality certification from ISO 9001 and JAB. According to electroplate and saline of security and durable tests are whether full of high stable quality can suit to wet condition of Taiwan.
Specifications
| Mini | ||||||||||||
| Size |  |
 |
 |
 |
 |
 |
||||||
| mm | 10.6x5 | 10.6x10 | 14x6.4 | 14x12.8 | 16x7.5 | 16x15.0 | ||||||
| Loading capacity ( N/set ) |
49 | 49 | 98 | 98 | 98 | 98 | ||||||
| Straight line Slide |
|
|
|
|||||||||
| Two route Slide |
|
|
|
|||||||||
| Inside route Slide |
|
|
||||||||||
| Outside route Slide |
|
|
|
|||||||||
| Light Load Type | Middle Load Type | |||||||||||||||||
| Size |  |
 |
 |
 |
 |
 |
||||||||||||
| mm | 18.3x7.5 | 20x10.5 | 20x8 | 20x16.0 | 27x9.5 | 27x19 | 27x19 | |||||||||||
| Loading capacity ( N/set ) |
59 | 98 | 147~196 | 98~147 | 235~275 | 275~363 | 275~363 | |||||||||||
| Straight line Slide |
|
|||||||||||||||||
| Two route Slide |
|
|||||||||||||||||
| Inside route Slide |
|
|
||||||||||||||||
| Outside route Slide |
|
|
|
|
|
|||||||||||||
| Middle Load Type | High Load Type | ||||||||||||||||||||||||||||||||||||||
| Size |  |
 |
 |
 |
 |
 |
 |
||||||||||||||||||||||||||||||||
| mm | 35.3x13 | 35.3x9.6 | 35.3x19.2 | 35.3x19.2 | 39.8x19.2 | 71.4x12.9 | 71.4x23.8 | 81.3x12.9 | |||||||||||||||||||||||||||||||
| Loading capacity ( N/set ) |
294~343 | 284~441 | 402~471 | 402~471 | 382-451 | 569~824 | 1030~1098 | 402~471 | |||||||||||||||||||||||||||||||
| Straight line Slide |
|
||||||||||||||||||||||||||||||||||||||
| Two route Slide |
|
||||||||||||||||||||||||||||||||||||||
| Inside route Slide |
|
|
|||||||||||||||||||||||||||||||||||||
| Outside route Slide |
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||
| High Load Type | ||||||||||||||||
| Size |  |
 |
 |
 |
 |
|||||||||||
| mm | 107.5x23.8 | 54.8x16.0 | 63x16.0 | 69.8x19.8 | 94x18.0 | |||||||||||
| Loading capacity ( N/set ) |
1657~1746 | 706~981 | 785~1324 | 1765 on | ||||||||||||
| Straight line Slide |
||||||||||||||||
| Two route Slide |
||||||||||||||||
| Inside route Slide |
||||||||||||||||
| Outside route Slide |
|
|
|
|
|
|||||||||||
