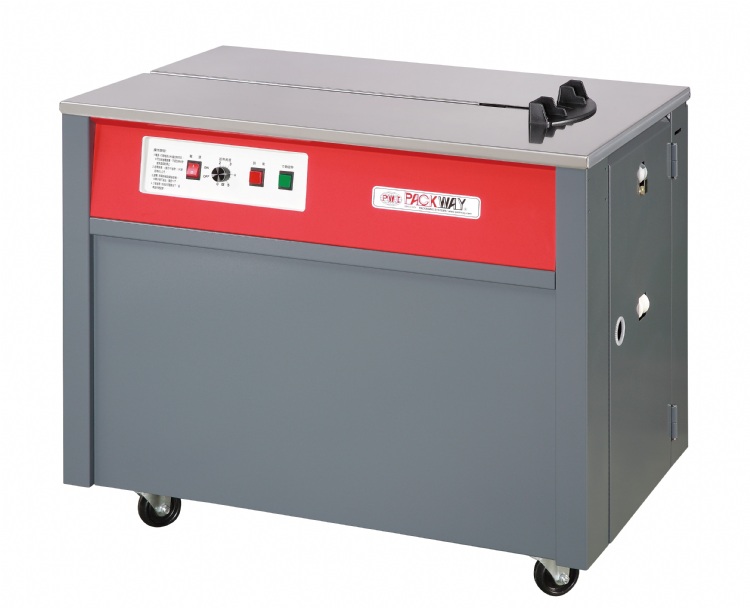

AP26 SEMI-AUTO STRAPPING MACHINE
Model: AP26
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Wrapping, Hot Melt Machines, Strapping and Packaging Machines
Characteristics
•Standard accessory, its advantage is stable quality, durable material, and easy maintenance.
•Special design-Control PP strap cooling time. It can make the PP strap to fasten well in any time.
•"Electricity-saving" device, the motor automatically stops running after 60 seconds pause to reduce the regular mechanical wear and to prolong the machine's life.
•The advanced P.C.B microchip circuit board control system, less malfunction and easy maintenance.
•Durable electro-magnetic clutch transmission means lesser mechanical wear and noise pollution.
•New heater plate design improves warm-up-time, weiding speed and increase work efficiency.
•Installing an auxiliary feed switch and cut switch at the control panel makes you operate more conveniently.
Specifications
Model |
AP-26 |
AP-26L |
AP-26SL |
Power supply |
1 Ø AC110,220V(50,60Hz), 1/4HP |
||
Strap width |
6,9,12,15 mm (adjustable) |
||
Tension strength |
15~50kgs |
||
Strapping speed |
2.0 sec./strap |
||
Min. package size |
60mm |
||
Max. package size |
Any size |
||
Dimension (LxWxH) (mm) |
910x580x750 |
1490x580x480 |
1510x580x330 |
N.W. |
100kgs |
90kgs |
80kgs |
G.W. |
120kgs |
110kgs |
90kgs |
Packing size (LxWxH) (mm) |
956x626x842 |
956x626x592 |
Machine: 956x626x746 |
