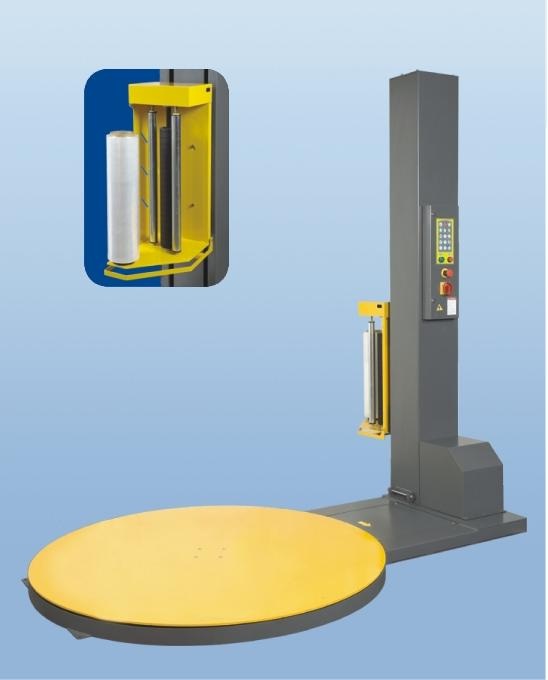

AP-1521Pallet Stretch Wrapping Machine
Model: AP-1521
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Wrapping, Hot Melt Machines, Strapping and Packaging Machines
Characteristics
Technical specifications
¡´Adjustable film tension via electromagnetic brake from
panel and the brake stretch rate can reach 100%.
¡´Auto film tension relation in order to easy stick the film on
next wrapping object.
¡´Adjustable automatic photocell load height detection.
¡´Security foot guard user protection.
¡´E-GO control panel with complete function.
¡´Top&Bottom wrapping counter from 0~9 cycles.
¡´Turntable stops in reset position.
¡´Carriage speed adjustable from 0.5M/min~6M/min.
Specifications
Machine Specification
¡´Production rate:UP to 35 loads per hour
¡´Machine dimensions:1500MM*2300MM*2300MM
¡´Turntable size:1500MM
¡´Load weight2000KG
¡´Wrap heights:2000MM
¡´Shipping weight:450KG
¡´Electric requirements:1C/220V/50/60HZ
¡´Controls:Micro-processor IC board 24V DC control system ¡´Photocell sensor:Standard
¡´Structure:Structural steel construction for all series.
¡´Film size:500MM wide/Max.O.D.250mm/
Corediameter76mm/Film gauge12~35Microns
Optional
¡´Turntable 1650mm/1800mm
¡´Wrapping hight 2500mm/3000mm
¡´Pneumatic top pressure
¡´2500KG loading
¡´750MM wide film
¡´Ramp
