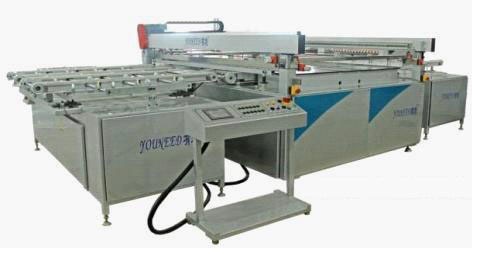

YLQY-S8013 Auto Screen Printing Machine
Model: YLQY-S8013
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Screen Printing Machines
Characteristics
Suitable for various of plane piece or sheet boards. Such as medium-small size plane glass and amorphous glass,PV glass, film, metal sheet board etc.
※It is available to make special specification OEM/ODM and machinery automatic product line orders.
Specifications
Parameter:
| Model | YLQY-S8013 |
| Table Size | 1336x1936mm |
| Max. Printing Size | 1300x800mm |
| Min. Printing Size | 600x350mm |
| Max. Frame Size | 1300x1900mm |
| Max. Frame Thickness | 20∼50mm |
| Mesa Fine Adjustment Range | ±10mm |
| Snap-off Adjustable Range | 0∼40mm |
| Screen Frame Washing Height | 400mm |
| Table Height | 930+30mm |
| Machine repeat precision | ±0.03mm |
| Max.Printing Speed | 240P/H |
| Air Pressure | 0.5∼0.7Mpa |
| Power Supply | 380V/50Hz |
| Total Power | 5kw |
| Outer Size | 5200x2500x1580mm |
| Screen Printing Machine Size | 2011x2500x1580mm |
| Machine N.W.(Approximately) | 1255kg |
| Loading and Unloading Machine Size | 1570x1730x950mm |
| Loading and Unloading Machine N.W. |
335kg |
