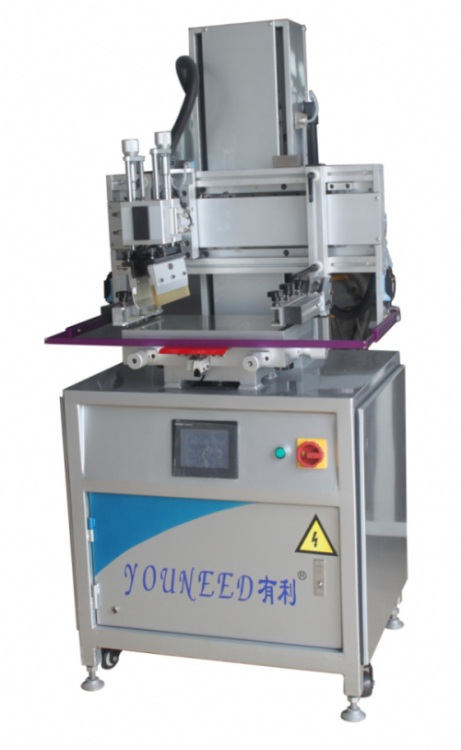

YL-J2023 CNC Screen Printing Machine
Model: YL-J2023
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Screen Printing Machines
Characteristics
Apply to high precision screen printing operation for all kinds of flat materials. Such as Touch screen, mobile phone lens, film button etc.
Specifications
Parameter:
|
Model |
YL-J2320 |
|
Table Size |
400x250mm |
|
Max.Printing Size |
230x200mm |
|
Max.Frame Size |
580x400mm |
|
Screen Frame Height |
0-25mm |
|
Screen Frame Washing Height |
200mm |
|
Printable Substrate Thickness |
0-50mm |
|
Mesa Fine Adjustment RangeX/Y |
±10mm |
|
Machine Repeat Printing Precision |
±0.03mm |
|
Max.Printing Speed |
750P/H |
|
Air Pressure |
0.5-0.6Mpa |
|
Air Consumption |
2.17L/min |
|
Power Supply |
220V/50Hz |
|
Total Power |
0.95kw |
|
Outer Size |
750x680x1650mm |
|
Machine N.W. |
244kg |
