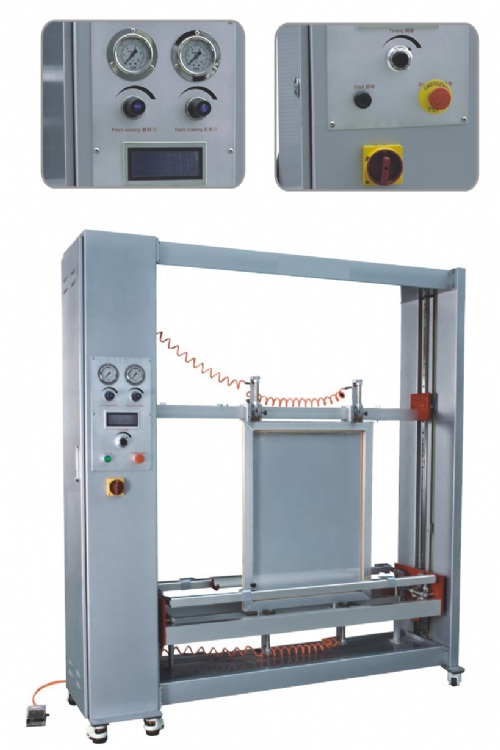

YL-TA1213 Auto Emulsion Coating Machine
Model: YL-TA1213
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Screen Printing Machines
Characteristics
Feature:
☆ By using the technology of screen touch PLC.F930GOT of Mitubish FXIN series, the machine achieved the advanced level of international standard. We can improved the equipment through software complication.
☆ Adopt the technology of SMC and FESTO cylinder proving the accuracy adjustment of coating.;
☆ Adopt the technology MITUBISH s500 transducer, coating speed can adjust 0-120mm/s smoothly to satisfy the demands of coating technics, made the accuracy of coating repeatition<1mm.
☆ Quality steel-shelves structure and lineal conductor assure the equality of coating when using the coating scraper-shelf
☆ Convenient man-machine interface make setting the coating order and time easily for user, also the intelligentized alarming page layout speed the service.
Specifications
Parameter:
Modle |
YL-TA1213 |
Max Frame Size |
1200 X 950 mm |
Euphotic Size |
1300 X 1100 mm |
Lamp-house |
3KW UV Lamp |
Vacuum air pump |
220V/50Hz |
Vacuum range |
-0.08Mpa |
Power Supply |
Sp220V/50Hz 3.5KW |
Outer Size |
1550 X 1400 X 1320 mm |
N.W. |
(About)400KG |
