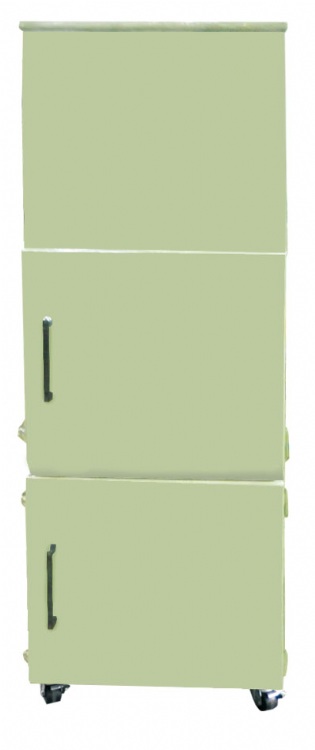

dust collector
Model: NS-503
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Dust Collectors
Characteristics
Screw design of mobile storage tank, storage tank placed garbage bags directly bundled out the trash, clean up dust easily.
•The blower is applied for sucking air only. The sucked dusts do not directly contact with motor for increased service life of motor.
•For dry and wet applications, can be used as normal household vacuum cleanner.
•Allows for 24 hours operation.
•Suitable for poisonous or non-poisonous dusts such as graphite, fiber, food, carbon powder, aluminum powder, pesticide and medicine.
•Iron chips or copper chips can also be collected with maximum durability and easy cleaning.
•High pressure pulsated jet for automatically cleaning dusts existed in the center of filter core. Dusts are knocked off automatically, making it suitable for 24 hours operations.
•The innovative dust collector in Taiwan with automatically pulsated filer-core features silent operation without need to change filtering bag.
•The filter-core is manufactured from PET bellow type filtering element, providing greater filtering area. Applicable for any fine powder.
•Various motor horsepowers and specification to meet specific requirement.
•The filter-core allows for filtering powder of up to 0.1µm(micron) .
•Equipped with sound buffering device for reducing noise.
Specifications
MOTOR HP | 1 | 2 | 3 | 5 | 7 | 10 | 15 | |||||
Output power KW | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | |||||
Volt V (optional) | 220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
|||||
Inlet port dia. Inch (optional) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||
Static pressure mmAq | 1800 | 2500 | 2800 | 3000 | 3200 | 3400 | 3000 | |||||
Dimensions CM (LxWxH) | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | 95 x 60 x 165 | |||||
Air flow m3/min. (optional) | 2.2 | 4.5 | 6.2 | 8.3 | 9.5 | 11 | 24 | |||||
Noise level db | 60 | 65 | 65 | 67 | 74 | 74 | 76 | |||||
Volume L (optional) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |||||
Machine weight Kg | 72 | 82 | 87 | 107 | 137 | 147 | 227 | |||||
|
