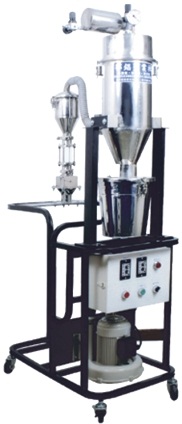

PULSED SIFTING MACHINE
Model: CS-104
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
Filtering screen may be changed as desired.
•Applicable for filtration in various industries, such as optical lenses, medicine and sand blasting.
•Stainless steel material tank features light weight. Maximum durability and easy cleaning.
•Material suction and hold time can be set as desired for added convenience.
•Automatic powder removing by compressed air to eliminate clogging while providing convenient cleaning.
• Various motor horsepowers and specification to meet specific requirement.
Specifications
MODEL |
CS-104 |
|||||||||||
MOTOR HP | 1 | 2 | 3 | 5 | 7 | 10 | 15 | |||||
Output power KW | 0.74 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | |||||
Volt V | 220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
|||||
Inlet Diameter Inch (optional) | 2 | 2 | 2 | 2 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Capacity ( Kg / hr ) (optional) | 250-1000 | 250-1000 | 250-1000 | 250-1000 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Filtration Dimension Diameter x Height (mm) |
325 x 200 | 325 x 200 | 325 x 200 | 325 x 200 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
PET Filter (piece) | 1 | 1 | 1 | 1 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Static pressure mmAq | 1800 | 2500 | 2800 | 3500 | 3200 | 3400 | 3000 | |||||
Dimensions CM (Diameter x Height) (optional) |
45 x 113 | 45 x 113 | 45 x 113 | 45 x 113 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Air flow m3/min. (optional) | 2.2 | 4.5 | 6.2 | 8.3 | 9.5 | 11 | 24 | |||||
Noise level db | 60 | 65 | 65 | 67 | 74 | 74 | 76 | |||||
Volume L (optional) | 30 | 30 | 30 | 30 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
Machine weight Kg (With Motor) | 70 | 80 | 85 | 105 | (By Drawing) | (By Drawing) | (By Drawing) | |||||
|
