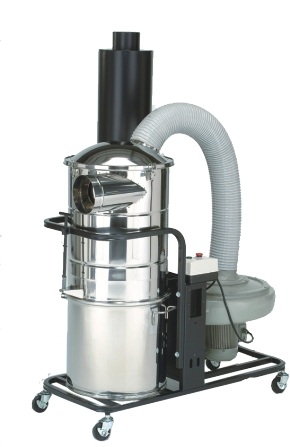

OIL MIST COLLECTOR
Model: CS-105
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pollution Abatement Equipment
Characteristics
The floor type oil mist collector will upgrades machining accuracy (No vibration to effect machining accuracy).
•Excellent filtrating effect. No need to frequently clean the filter. The filter can be washed and used repeatedly.
•Allows for 24 hours operation.
•Manufactured from SUS#304 material with bright and smooth appearance. Easy to clean.
•Various motor horsepowers and specifications to meet specific requirements.
•Filter can be cleaned repeatedly for reuse.
•Suitable for various oil mists created by CNC lathes, milling machines, grinding machines and drilling machines.
• Oil mist and coolant can be reclaimed.
•One collector is used for several machines.
•Powerful suction capacity; high speed.
• Centrifugal Construction: The first stage handles coolant and the second stage handles oil mist to prevent oil mist from splashing out.
•Equipped with sound buffer to reduce noise problem.
Specifications
MODEL |
CS-1051 |
||||||||
MOTOR HP | 1 | 2 | 3 | 5 | |||||
Output power KW | 0.75 | 1.5 | 2.2 | 3.7 | |||||
Volt V (optional) | 220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
220 / 380 400 / 440 |
|||||
Inlet port dia. Inch (optional) | 6 | 6 | 6 | 6 | |||||
Static pressure mmAq | 270 | 320 | 380 | 400 | |||||
Dimensions CM (LxWxH) | 110 x 76 x 140 | 110 x 76 x 140 | 110 x 76 x 140 | 110 x 76 x 140 | |||||
Air flow m3/min. (optional) | 18 | 22 | 40 | 45 | |||||
Noise level db | 65 | 70 | 75 | 80 | |||||
Volume L (optional) | 40 | 40 | 40 | 40 | |||||
Machine weight Kg | 77 | 84 | 91 | 113 | |||||
|
