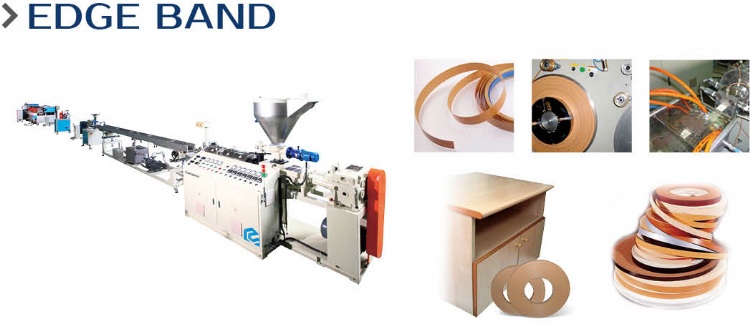

PVC EDGE BEND EXTRUSION LINE
Model: EMD-52 TWIN SCREW EXTRUDER MACHINE LINE
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PVC Profile Extrusion Machines
Characteristics
We provide the professional extrusion lines to our customers based on the market demand and the diversified characteristics of the resin material.
Specifications
A. EMD-52 TWIN SCREW EXTRUDER
1. GEAR BOX
-motor: 15 HP-4P AC with inverter
2. SCREW
-L/D: 24:1
-screw Dia: Æ 52 m/m
-screw no. 2
-rotation: parallel counting rotation
B. EVWT-3000 VACUUM WATER COOLING TANK
- tank body by stainless steel SUS#304,
up and down tank design, center height adjustable
C. ETB-030818 BELT HAUL-OFF UNIT
- belt type
effective track length: 200 m/m
effective track width : 80 m/m
D. EMBOSSING UNIT
- two roller type
Up roller pattern, down roller smooth
E. AIR-CUTTER
- air cylinder: f 32 x 45mm(stroke)
- cutting Dia.: 20m/m or 50(W) x 2 m/m(t)
F. WD-800E DOUBLE BOBBIN WINDER
- bobbin: 2 sets of aluminum alloy disc, united shaft coupling for easy operation
ID: 200m/m , OD: 800m/m, width: 100m/m (adjustable)
