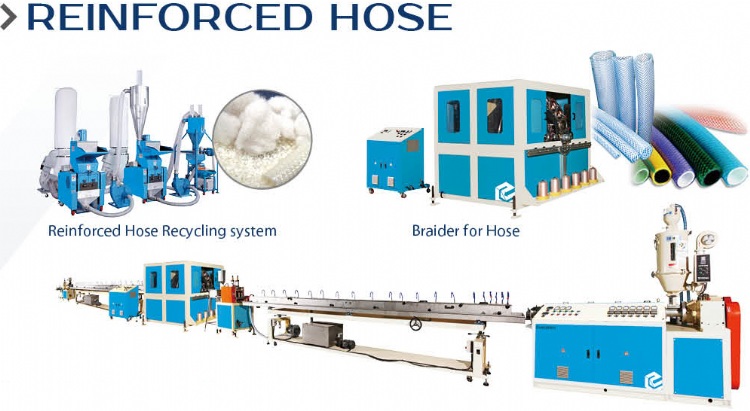

PVC REINFORCED HOSE PRODUCTION MACHINE LINE
Model: EMS-75 Single Screw Machine Line
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Soft & Rigid Plastic Pipe Making Machines
Characteristics
1. Overall, Everplast Machinery / E-Plast have produced and turned out
more than 1500 extrusion lines in nearly 20 years.
2. The success of our machine lines lie in the fact that we incorporate the
specific resin characteristics and the assembly of the machine line well to
enable our customers to produce quality finished product to their end
users.
Specifications
A. EMS-75 75MM SINGLE SCREW EXTRUDER
- gear box: motor: 40 HP AC with inverter
- screw
screw material: SCM-645
B. EWT-4500 WATER COOLING TANK
- water tank: material: sus#304
C. ETB-051024 BELT HAUL-OFF UNIT
- belt type:
effective track length: 400 m/m
effective track width : 100 m/m
effective track height: 110 m/m
D. EMB-24-1250 BRAIDING MACHINE
- max. hose size: 2"
- driving motor: 10 HP
E. EM-HB HEATING BOX
- Heater pipe: 6000W
F. EMS-75 75MM SINGLE SCREW EXTRUDER
G. EWT-6000 WATER COOLING TANK
- water tank: material: sus#304
H. ETR-4 TWO WHEEL HAUL-OFF UNIT
- pull device: by 4 PU roller (up and down)
I. AIR CUTTER
- Max length 100m
J. SEMI-AUTOMATIC WINDER
-bobbin dia.: 700 mm
