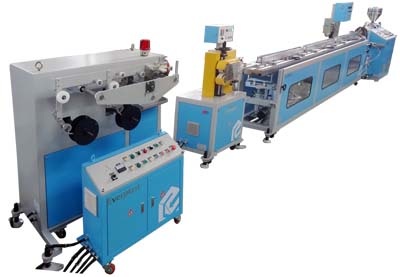

3D Printing Filament Machine Line
Model: EMS-35 Single Extruder Machine
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PVC Profile Extrusion Machines
Characteristics
1. Precision:Outer diameter accuracy: 1.75 +/-0.05mm
2. Package:Finish product is coiled very neat and easily
3. Production: Line speed could be 20~30m/min
4. Prouct: There is no hole inside of the finish product
Specifications
A.EMS-3528 Extruder
- output: 2-8 kg/hr (depend on product size and resin)
- motor: 7.5 HP AC servo + inverter
B.EWT-6000 -3H COOLING TANK
- tank body by stainless steel SUS#304, length: 6000mm
- special design cooling system for ABS and PLA
C.ETB-030560 BELT HAUL-OFF UNIT
- belt type
effective track length: 250MM
effective track height: 110MM
effective track width: 50MM
- haul-off line speed: max 60 M/MIN, min 3M/MIN
- motor: 1 HP AC + inverter
D.EWD-200D
- bobbin ID: 38m/m , OD: 200m/m, width: 100m/m (adjustable)
- motor: 1HP AC motor
E.AIR CUTTER
- cutting Dia.: MAX. dia. 20m/m or 50(W) x 2 m/m(t)
- cutting speed: 60 PCs/min.
