Flat Ultrasonic Nylon Tea Bag Packing Machine with Outer Envelope

Enlarge

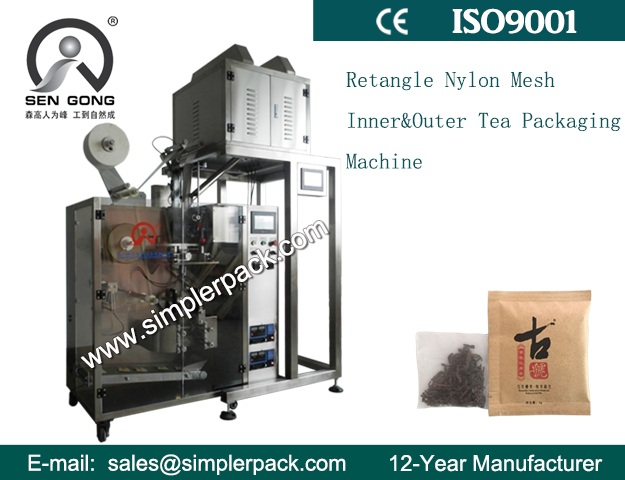

Flat Ultrasonic Nylon Tea Bag Packing Machine with Outer Envelope

Model: C23DX

Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Blister & Strip Packaging Machines

Online Inquiry

Characteristics

1) Automatic multi-function packaging forming machine;
2) Suitable for all kinds of drinks tea leaves, herbs and flowers;
3) Filter food-grade inner PLA/nylon/non-woven bag in flat shape;
4) With flat outer envelope; with thread and tag
5) Highly equipped with international brand-name parts;
6) All-round process: filing, weighing, bag forming, sealing, cutting and counting etc.
7) Measuring filling system: Electric scale;
8) Quality Approval : CE, ISO9001:2008
9) Machine experience : 12 Years

Specifications

C23DX Automatic Rectangle Nylon Mesh Inner and Outer Tea Bag Packing Machine (Electric Scales Filler)

Application:

It is suitable for rectangle inner and outer bag packaging for products such as loose leaf tea, herbal tea, health care tea, TieGuanYin, LongJing, DaMaoFeng, DaHongPao, rose tea, ginseng, etc.

Technical data

Machine type:	Tea Bag Packing Machine Series
Machine model:	C23DX
Machine name:	Rectangle Automatic Rectangle Nylon Mesh Inner and Outer Tea Bag Packing Machine (Electric Scales Filler)
Packing Material:	Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA.
Filling range:	1-3g/bag, error≤±0.2g/bag(depends on the materials)
Packing roll width:	120, 140, 160, 180(mm)
Adjustable range:	50, 60, 70, 80(mm)
Sealing and Cutting:	Electronic pulse--Ultrasonic melt cutting and heat sealing
Quantity of sealing device:	2 sets
Packing speed:	35-40bags/min
Motor Power:	380V, 50Hz, 1.2KW
Air supply:	Pressure≥0.9MPa, (optional with air pump )
Machine weight:	500KGS
Machine dimension:	1400mm1200mm2200mm(LWH)

//Features: //
1.The packing material of the rectangle inner bag is nylon, non-woven fabric material imported from Japan, which is non-toxic, no bacteria, heat-resistant high quality food grade material, conforming to our national safety inspection standard.
2.The machine uses a unique sealing method - ultrasonic. It can seal tightly, safely, reduce the width of the extra edge, avoiding any waste of packing material.
