Three Sides Seal Bag Honey Packaging Machine Fully Automatic
Model: T60AY
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Blister & Strip Packaging Machines
Characteristics
1) Automatic multi-function packaging forming machine;
2) Suitable for kinds of flowing products like ketchup, honey, seasoing oil, sauce etc.;
3) In stick three sides seal bag type;
4) High quality with advance machine parts;
5) All-round process: filing, weighing, sealing, cutting and counting etc.
6) International Approval : ISO9001:2008
7) Quality Approval : Certification of Compliance
8) Experience : 12 Years Manufacturing
Specifications

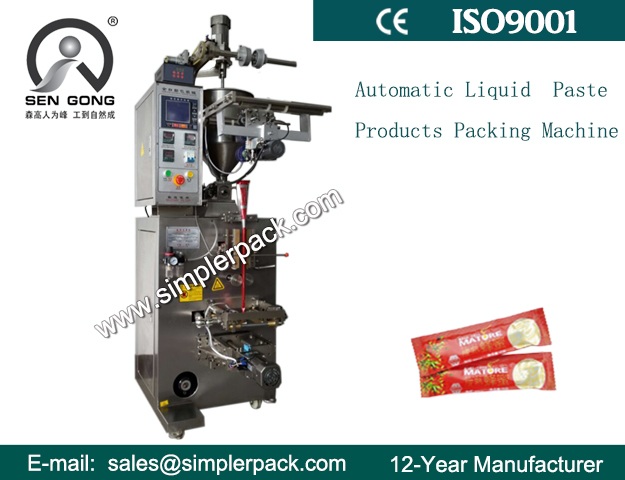

T60AY Fully Automatic Honey Ketchup Liquid Paste Packaging Machine
Application:
It is used to pack sauce-like and paste substance in food industry like honey, medicine industry and chemicals industry, etc.
Technical data:
Machine type: |
|
Machine model: |
T60AY |
Machine name: |
Fully Automatic Liquid Paste Packaging Machine |
Filling range: |
3-15ml(50-150ml can be customized) |
Bag size range: |
L: 30-150mm, W: 30-180mm |
Packing capacity: |
30-60bags/min |
Sealing method: |
3 sides sealing |
Power: |
220V, 50HZ, 1.9KW |
Machine weight: |
400KGS |
Machine dimension: |
900mm*700mm*1700mm(L*W*H) |
//Features: //
1.The machine can automatically perform bag-forming, measuring, filling, sealing, cutting and counting. If
necessary, it can equip with other devices like the batch number printer according to customer's requirement.
2.The machine adopts advanced PLC microcomputer control system, and installs drive stepper motor to control the bag length, with stable performance, simple adjustment, accurate detection.
3.The machine use intelligent temperature controller, PID regulator, ensuring to keep the temperature error under within below 1 degree centigrade.
4.The machine uses 3 sides sealing.
