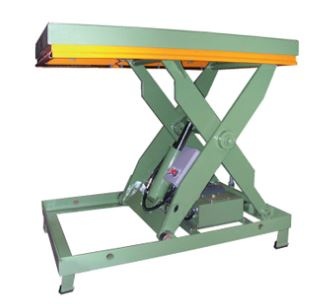

Single Stage ( One Cylinder ) Hydraulic Scissors Lift Table
Model: LT-1
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
The Hydraulic Scissors Lift Table use the Hydraulic Cylinder to carry the plate to catch the load up and down , to saving the human power and more efficiency
Specifications
Model | Size(mm) | Min. High(mm) | Max. High(mm) | Stroke(mm) | Capacity(kg) |
LT-106SA1 | 600 x 800 | 160 | 600 | 440 | 500 |
LT-106SA2 | 600 x 800 | 160 | 600 | 440 | 1000 |
LT-107SA1 | 700 x 1000 | 160 | 800 | 640 | 500 |
LT-107SA2 | 700 x 1000 | 160 | 800 | 640 | 1000 |
LT-107SB1 | 700 x 1200 | 160 | 1000 | 840 | 500 |
LT-107SB2 | 700 x 1200 | 160 | 1000 | 840 | 1000 |
LT-108SA1 | 800 x 1400 | 160 | 1160 | 1000 | 500 |
LT-108SA2 | 800 x 1400 | 160 | 1160 | 1000 | 1000 |
