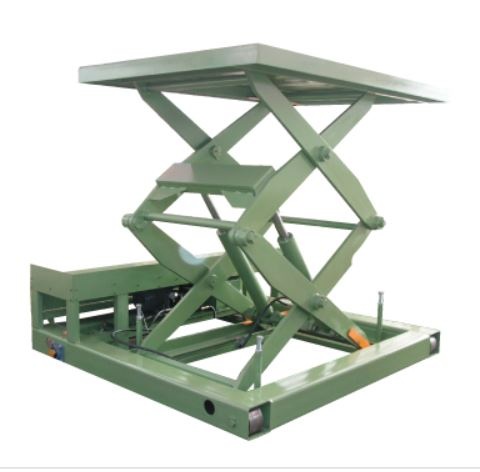

Double Stage ( Two Cylinder ) Hydraulic Scissors Lift Table
Model: LT-2
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
The Hydraulic Scissors Lift Table use the Hydraulic Cylinder to carry the plate to catch the load up and down , to saving the human power and more efficiency
Specifications
Double Stage ( Two Cylinder ) Hydraulic Scissors Lift Table
Model | Size(mm) | Min. High(mm) | Max. High(mm) | Stroke(mm) | Capacity(kg) |
LT-207DA | 700 x 1200 | 400 | 1900 | 1500 | 2000 |
LT-207DB | 700 x 1200 | 400 | 1900 | 1500 | 3000 |
LT-208DA | 800 x 1500 | 400 | 2400 | 2000 | 2000 |
LT-208DB | 800 x 1500 | 500 | 2300 | 1900 | 3000 |
LT-209DA | 900 x 1800 | 500 | 2850 | 2350 | 2000 |
LT-209DB | 900 x 1800 | 550 | 2850 | 2300 | 3000 |
LT-210DA | 1000 x 2000 | 550 | 3100 | 2550 | 2000 |
LT-210DB | 1000 x 2000 | 600 | 3100 | 2500 | 3000 |
LT-212DA | 1200 x 2400 | 600 | 3800 | 3200 | 2000 |
LT-212DB | 1200 x 2400 | 700 | 3700 | 3000 | 3000 |
LT-215DA | 1500 x 3000 | 600 | 4800 | 4200 | 1000 |
LT-215DB | 1500 x 3000 | 700 | 4700 | 4000 | 2000 |
LT-215DC | 1500 x 3000 | 800 | 4700 | 3900 | 3000 |
