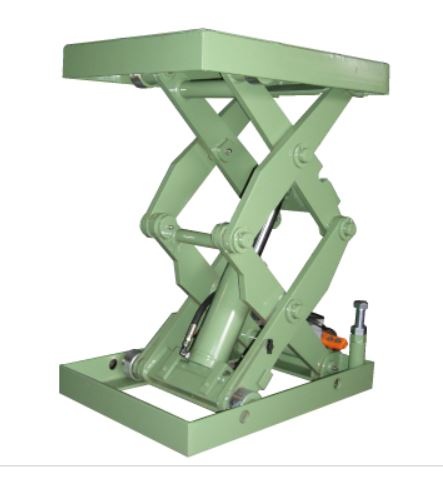

Double Stage ( One Cylinder ) Hydraulic Scissors Lift Table
Model: LT-2
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
The Hydraulic Scissors Lift Table use the Hydraulic Cylinder to carry the plate to catch the load up and down , to saving the human power and more efficiency
Specifications
Double Stage ( One Cylinder ) Hydraulic Scissors Lift Table
Model | Size(mm) | Min. High(mm) | Max. High(mm) | Stroke(mm) | Capacity(kg) |
LT-205SA | 500 x 700 | 250 | 1100 | 850 | 500 |
LT-205SB | 500 x 700 | 300 | 1100 | 800 | 1000 |
LT-206SA | 600 x 1000 | 250 | 1600 | 1350 | 500 |
LT-206SB | 600 x 1000 | 300 | 1500 | 1200 | 1000 |
LT-206SC | 600 x 1000 | 300 | 1500 | 1200 | 2000 |
LT-207SA | 700 x 1200 | 300 | 1950 | 1650 | 1000 |
LT-208SA | 800 x 1500 | 400 | 2400 | 2000 | 1000 |
LT-209SA | 900 x 1800 | 450 | 2900 | 2450 | 1000 |
LT-210SA | 1000 x 2000 | 500 | 3200 | 2700 | 1000 |
LT-212SA | 1200 x 2400 | 550 | 3900 | 3350 | 1000 |
