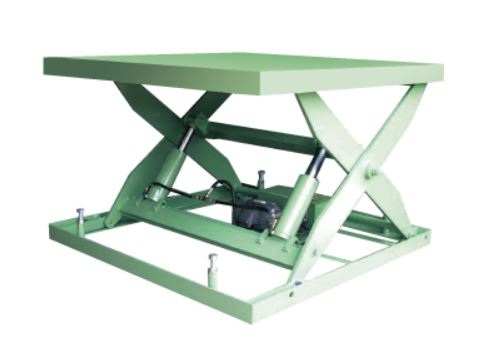

Single Stage ( Two Cylinder ) Hydraulic Scissors Lift Table
Model: LT-1
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
The Hydraulic Scissors Lift Table use the Hydraulic Cylinder to carry the plate to catch the load up and down , to saving the human power and more efficiency
Specifications
Single Stage ( Two Cylinder ) Hydraulic Scissors Lift Table
Model | Size(mm) | Min. High(mm) | Max. High(mm) | Stroke(mm) | Capacity(kg) |
LT-108SB | 800 x 1200 | 200 | 1000 | 800 | 1000 |
LT-109SA | 900 x 1500 | 200 | 1250 | 1050 | 1000 |
LT-109SB | 900 x 1800 | 300 | 1500 | 1200 | 1000 |
LT-110SA | 1000 x 2000 | 300 | 1650 | 1350 | 1000 |
LT-112SA | 1200 x 2400 | 300 | 2000 | 1700 | 1000 |
LT-108DA | 800 x 1500 | 200 | 1000 | 800 | 2000 |
LT-109DA | 900 x 1500 | 200 | 1280 | 1080 | 2000 |
LT-109DB | 900 x 1800 | 300 | 1500 | 1200 | 2000 |
LT-110DA | 1000 x 2000 | 300 | 1650 | 1350 | 2000 |
LT-112DA | 1200 x 2400 | 350 | 1850 | 1500 | 2000 |
LT-115DA | 1500 x 3000 | 350 | 2300 | 1950 | 2000 |
LT-115DB | 1500 x 3000 | 400 | 2300 | 1900 | 3000 |
LT-108HA | 800 x 1200 | 250 | 950 | 700 | 3000 |
LT-109HA | 900 x 1500 | 250 | 1250 | 1000 | 3000 |
LT-109HB | 900 x 1800 | 350 | 1500 | 1150 | 3000 |
LT-110HA | 1000 x 2000 | 350 | 1650 | 1300 | 3000 |
LT-110HB | 1000 x 2000 | 400 | 1600 | 1200 | 5000 |
LT-112HA | 1200 x 2400 | 350 | 1850 | 1500 | 5000 |
LT-112HB | 1200 x 2400 | 400 | 1850 | 1450 | 5000 |
LT-115HB | 1500 x 3000 | 500 | 2300 | 1800 | 5000 |
