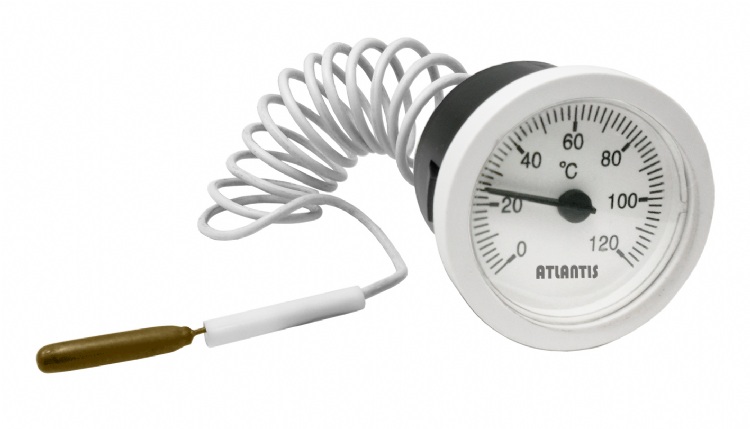

Remote Reading Small Thermometer with Capillary
Model: RT50 Series
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Thermometers
Characteristics
Features
¡½ OEM service
¡½ Compact design with affordable price
¡½ Suitable for temperature measurement that needs remote reading
¡½ Full scale accuracy: within 3%
¡½ Medium-actuated measurement ensuring the fastest reaction to ambient temperature
Specifications
Main Specifications
¡¿Size
2”
¡¿Window
PC
¡¿Mount type
Snap-in design
Secure on socket
¡¿Stem
Material: copper alloy
Outer diameter 1/4” (6mm)
Length: 32mm
¡¿Temperature range
Min.: 0°C
Max.: +120°C
¡¿Applicable fluid
Liquid and gas that compatible with copper alloy
¡¿Protection level
IP 54
Other Specifications
¡¿Ring
Stainless steel
Outside bayonet
¡¿Case
ABS
¡¿Pointer
ABS
¡¿Dial face
All black scale
¡¿Measuring elements
Bourdon tube
Material: copper alloy
Liquid-actuated¡¿
¡¿Capillary
Copper alloy, covered by plastic
Length: 3m
¡¿Movement
Copper alloy
¡¿Temperature accuracy
3%
¡¿Operating temperature
Stabilization: 3/4* full scale
Short-time: 1* full scale
