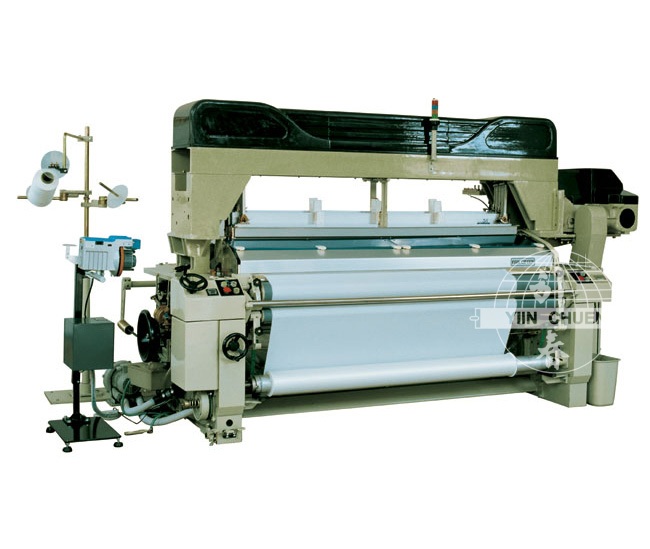

Single Nozzle Tappet Shedding Water-Jet Loom (with Electronic Measuring &Storage System)



Model: JW-751C

Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Other Textile Machines



Online Inquiry





Characteristics



description:
The JW-751C is a tappet shedding model designed for twill and satin fabric. It is high-speed, high efficiency and steady working achieve excellent performance in weaving high-density twill and satin fabrics

The optional mechanical measuring and storage system, dobby shedding device (JW-651-D) and two nozzle electronic measuring and storage system can mounted on this
type of loom thereby enlarging the workable range from various thin to thick fabrics.

Specifications:
1) Reed width: 170, 190, 210, 230, 250cm
2) Filling insertion rate: 2,280m/min max.
3) Head frame: 10pcs max.
4) Power: 2.8, 3.5, 4.6kW
5) Weft density: 5 ~ 60picks/cm
6) Rotational speed: 1,200rpm max.

Yarn:
1) Nylon-6 filament
2) Nylon-6 non-sizing
3) Polyester filament
4) Polyester draw textured
5) Polyester spun yarn
6) Polyester high twisting yarn
7) Polyester POY
8) Polyester non-sizing filament
9) O.P. yarn
10) Taslon yarn
