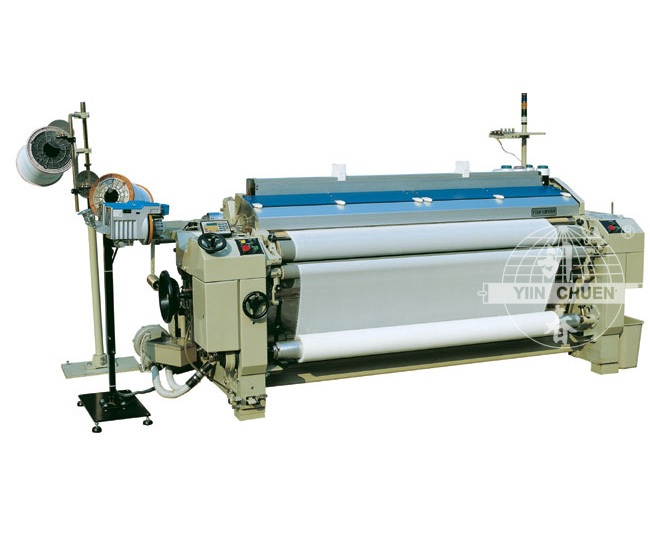

Single Pump Two Nozzle Water-Jet Loom for Thick Fabric With Electronic Measuring&Storage System



Model: JW-862CH

Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Other Textile Machines



Online Inquiry





Characteristics



description:
The JW-862CH was developed on the existing structure of model JW-861H. Therefore it also has excellent vibration reduction and stabilized beating motion during high speed operation making it especially suitable for weaving high twisted yarns

Product Name: Water Jet Loom (JW-862CH, Yiinchuen Brand)
Model Number: JW-862CH
Place of Origin: China

The optional two-pump two nozzle electronic measuring and storage system, tappet
shedding device and dobby shedding device can be mounted on this type of water jet
loom.

Specifications:
1) Reed width: 170, 190, 210, 230cm
2) Filling insertion rate: 2,280m/min max.
3) Head frame:
a) Tappet shedding: 2, 4, 6, 8, 10pcs max.
b) Dobby shedding: 16pcs max.
4) Power: 3.5, 4.6kW
5) Weft density: 5 ~ 60picks/cm
6) Rotational speed: 1,200rpm max.

Yarn:
1) Nylon-6 filament
2) Nylon-6 non-sizing
3) Polyester filament
4) Polyester draw textured
5) Polyester spun yarn
6) Polyester high twisting yarn
7) Polyester POY
8) Polyester non-sizing filament
9) O.P. yarn
10) Taslon yarn
