• Tow Pump Two Nozzle Dobby Shedding Water-Jet Loom for Thick Fabric

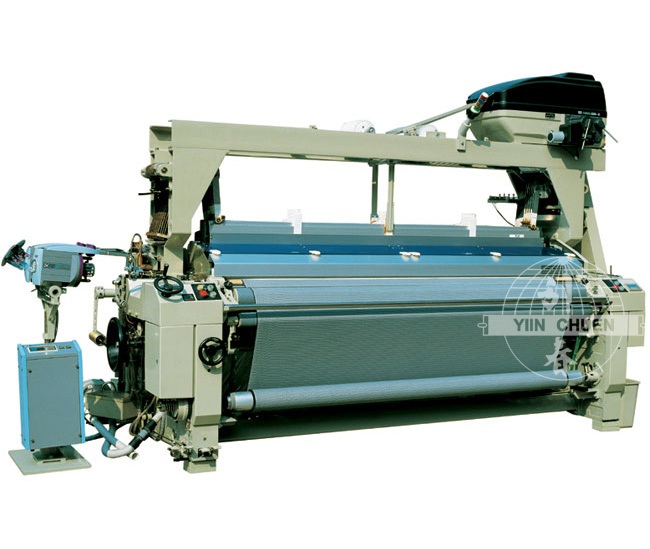

Tow Pump Two Nozzle Dobby Shedding Water-Jet Loom for Thick Fabric



Model: JW-662CH-2P

Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Other Textile Machines



Online Inquiry





Characteristics



description:
The JW-662CP is our specially designed new model with larger workable range of yarns, two pump water-jet feeding system and electronic control system. It can weave two kinds of different yarns at the same time

Model Number: JW-662CH-2P
Place of Origin: China

The JW-861H base with its sturdy structure is also excellent in vibration reduction
during high-speed operation. All these make JW-662CP suitable for weaving high-density, heavy and thick fabrics.

Specifications:
1) Reed width: 170, 190, 210, 230cm
2) Filling insertion rate: 2,280m/min max.
3) Head frame:
a) Plain shedding: 10pcs max.
b) Dobby shedding: 16pcs max.
4) Power: 2.8, 3.5, 4.5kW
5) Weft density: 5 ~ 60picks/cm
6) Rotational speed: 1,200rpm max.

Yarn:
1) Nylon-6 filament
2) Nylon-6 non-sizing
3) Polyester filament
4) Polyester draw textured
5) Polyester spun yarn
6) Polyester high twisting yarn
7) Polyester POY
8) Polyester non-sizing filament
9) O.P. yarn
10) Taslon yarn
